Showing all 10 results

Desktops (12)

Graphics Card (74)

Laptop (108)

Monitor (8)

Motherboard (34)

PC Components

PC Peripherals (25)

Placeholder

Uncategorized (117)

E-ATX

Show 9 12 18 24

Add to wishlist

MSI MEG X670E ACE

Rated 4.25 out of 5

In stock

Add to cart

Chipset	AMD X670
CPU	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Memory	4x DDR5, Maximum Memory Capacity 256GB Memory Support DDR5 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 8000+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5400+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO
Onboard Graphics	1x Type-C DisplayPort Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz
Slot	3x PCI-E x16 slot • Supports x16/x0/x4 or x8/x8/x4 (For Ryzen™ 9000 and 7000 Series processors) • Supports x8/x0/x4 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors) • Supports x4/x0/x2 (For Ryzen™ 5 8500G processor) PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 5.0 supports up to x4 (From CPU)
Audio	Realtek® ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA 7.1-Channel USB High Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel
Storage	4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices 6x SATA 6G
Multi-GPU	AMD MULTI-GPU Support
RAID	Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices* Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
USB	4x USB 2.0 (Front) 4x USB 2.0 ports (Front) 4x USB 5Gbps Type A (Front) 8x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front) 2x USB 20Gbps Type C (Rear) 1x USB 20Gbps Type C (Front)
LAN	Marvell® AQC113CS-B1-C 10Gbps LAN
Internal IO	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Slow Mode Booting Jumper(JSLOW) 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) V-check point 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports 1x USB 20Gbps Type C ports
WIRELESS LAN & BLUETOOTH	AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3
LED FEATURE	1x EZ LED Control switch 4x EZ Debug LED 1x 2-Digit Debug Code LED
BACK PANEL PORTS	Clear CMOS Button Flash BIOS Button USB 3.2 Gen 2 10Gbps (Type-A) 10G Super LAN Wi-Fi / Bluetooth HD Audio Connectors Smart Button USB 3.2 Gen 2×2 20Gbps (Type-C) USB 3.2 Gen 2 10Gbps (Type-C Display port) USB 3.2 Gen 2×2 20Gbps (Type-C) Optical S/PDIF-Out
OPERATING SYSTEM	Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info	E-ATX 277mmx304.8mm

Add to wishlist

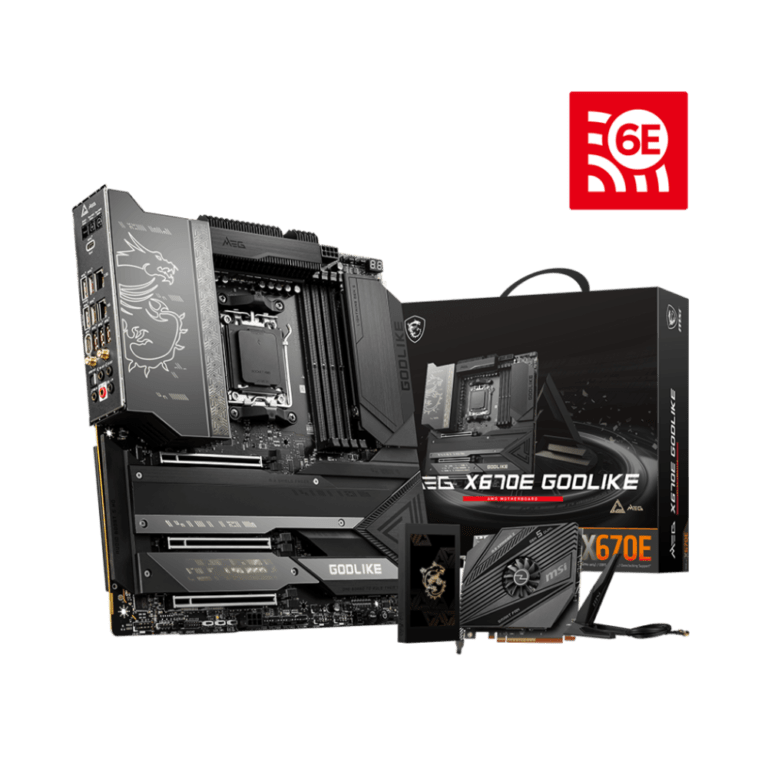

MSI MEG X670E GODLIKE

Rated 4.22 out of 5

In stock

Add to cart

Chipset	AMD X670
CPU	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Memory	4x DDR5, Maximum Memory Capacity 256GB Memory Support DDR5 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 8000+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5400+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO
Slot	3x PCI-E x16 slot • Supports x16/x0/x4 or x8/x8/x4 (For Ryzen™ 9000 and 7000 Series processors) • Supports x8/x0/x4 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors) • Supports x4/x0/x2 (For Ryzen™ 5 8500G processor) PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 5.0 supports up to x4 (From CPU)
Audio	Realtek® ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA 7.1-Channel USB High Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel
Storage	4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 8x SATA 6G
Multi-GPU	AMD MULTI-GPU Support
RAID	Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices* Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
USB	4x USB 2.0 (Front) 4x USB 2.0 ports (Front) 4x USB 5Gbps Type A (Front) 7x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 2x USB 20Gbps Type C (Rear) 1x USB 20Gbps Type C (Front)
LAN	Marvell® AQC113CS-B1-C 10Gbps LAN Intel® I225V 2.5Gbps LAN
Internal IO	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 4pin or 6 pin) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) V-check point 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports 1x USB 20Gbps Type C ports
WIRELESS LAN & BLUETOOTH	AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3**
LED FEATURE	1x EZ LED Control switch 4x EZ Debug LED 1x 2-Digit Debug Code LED
BACK PANEL PORTS	1- Clear CMOS Button 2- Flash BIOS Button 3- 2.5G LAN 4- 10G Super LAN 5- USB 3.2 Gen 2 10Gbps (Type-A) 6- Wi-Fi / Bluetooth 7- HD Audio Connectors 8- Smart Button 9- USB 3.2 Gen 2×2 20Gbps (Type-C) 10- USB 3.2 Gen 2 10Gbps (Type-A) 11- USB 3.2 Gen 2 10Gbps (Type-A) 12- USB 3.2 Gen 2×2 20Gbps (Type-C) 13- Optical S/PDIF-Out
OPERATING SYSTEM	Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info	E-ATX 288mmx304.8mm

Add to wishlist

MSI MEG X870E GODLIKE

Rated 4.06 out of 5

In stock

Add to cart

Chipset	AMD X870E
CPU	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 9000 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only
Onboard Graphics	2x Type-C DisplayPort USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz
Slot	2x PCI-E x16 slot 1x PCI-E x4 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 & PCI_E2 slots • Supports up to PCIe 5.0 x16/ x0 or x8/ x8 (For Ryzen™9000/ 7000 Series processors) • Supports up to PCIe 4.0 x8/ x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports up to PCIe 4.0 x4/ x0 (For Ryzen™ 8500/ 8300 Series processors) PCI_E3 slot • Supports up to PCIe 4.0 x4
Audio	Realtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA 7.1-Channel USB High-Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel
Storage	7x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M.2_1 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_2 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_1: • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M.2_2: • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors. M2_4: PCI_E3 slot will run at x2 speed when installing device in the M2_4 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_4 slot.
RAID	•Supports RAID 0, RAID 1 and Raid 10 for SATA storage devices •Supports RAID 0, RAID 1 and Raid 10 for M.2 NVMe storage devices
USB	4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 8x USB 10Gbps Type A (Rear) 5x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Front) 2x USB 40Gbps Type C (Rear)
LAN	1x Marvell® AQC113CS 10Gbps LAN 1x Realtek® 8126 5Gbps LAN
Internal IO	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Combo Fan (Pump_Sys Fan) 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 1x Addressable V2 RGB LED connector (JARGB_V2) V-check point 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports 1x USB 20Gbps Type C ports
WIRELESS LAN & BLUETOOTH	Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM
LED FEATURE	1x Dynamic Dashboard III 1x EZ Digit Debug LED 1x EZ LED Control switch
BACK PANEL PORTS	1- USB 10Gbps (Type-A) 2- Flash BIOS Button 3- Clear CMOS Button 4- Smart Button 5- 10G LAN 6- 5G LAN 7- Wi-Fi / Bluetooth 8- HD Audio Connectors 9- USB 40Gbps (Type-C) 10- USB 10Gbps (Type-C) 11- USB 10Gbps (Type-A) 12- Optical S/PDIF-Out
OPERATING SYSTEM	Support for Windows® 11 64-bit
PCB Info	E-ATX 304.8mmx277mm

Add to wishlist

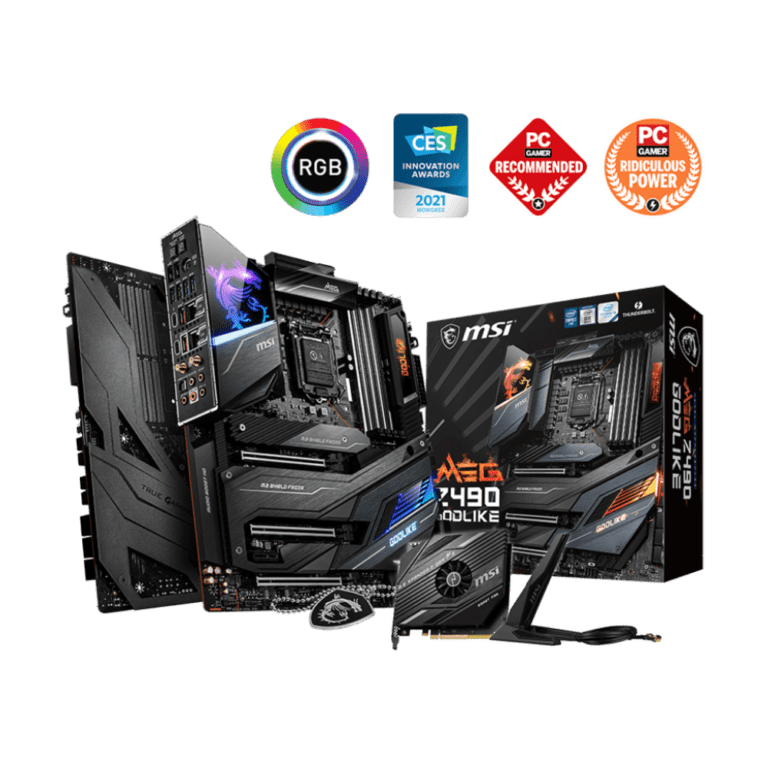

MSI MEG Z490 GODLIKE

Rated 0 out of 5

In stock

Add to cart

Socket	1200
Chipset	Intel® Z490 Chipset
Memory Channel	Dual
DIMM Slots	4
Max Memory (GB)	128
PCI-E x16	3
PCI-E x1	1
SATAIII	6
M.2 Slot	3
RAID	0/1/5/10
TPM (header)	1
USB 3.2 ports (Front)	1(Gen2, Type C), 4(Gen1, Type A)
USB 3.2 ports (Rear)	2(Gen2, Type C), 2(Gen2, Type A) ,4(Gen1, Type A)
USB 2.0 ports (Front)	4
USB 2.0 ports (Rear)	2
Audio ports (Rear)	Realtek® ALC1220 Codec + ESS SABRE9018Q2C combo DAC
DirectX	12
SLI	Y
CrossFire	Y
CPU Support	Support for Windows® 10 64-bit
Form Factor	E-ATX

Add to wishlist

MSI MEG Z590 GODLIKE

Rated 0 out of 5

In stock

Add to cart

Socket	1200
Chipset	Intel® Z590 Chipset
Memory Channel	Dual
DIMM Slots	4
Max Memory (GB)	128
PCI-E x16	3
SATAIII	4
RAID	0/1/5/10
WiFi & Bluetooth	Intel® Wi-Fi 6E AX210
Thunderbolt 4	2x USB Type-C up to 40G, Charging support up to 5V/3A, 15W, 2x Mini DisplayPort input ports
USB 3.2 ports (Front)	1(Gen2, Type C), 4(Gen1, Type A)
USB 3.2 ports (Rear)	2(Gen2, Type A), 6(Gen1, Type A)
USB 2.0 ports (Front)	4
Audio ports (Rear)	5+ Optical S/PDIF (Realtek® ALC4082 Codec + ESS SABRE9018Q2C combo DAC)
DirectX	12
SLI	Y
CrossFire	Y
CPU Support	Support for Windows® 10 64-bit
Form Factor	E-ATX

Add to wishlist

MSI MEG Z690 ACE

Rated 3.98 out of 5

In stock

Add to cart

Processor	Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors 1 Processor socket LGA1700
Chipset	Intel® Z690 Chipset
Memory	4x DDR5 memory slots, supporting up to 192GB 1 Supports 1R 5600 MHz (by JEDEC & POR) Max. overclocking frequency: 1DPC 1R Max speed up to 6666+ MHz 1DPC 2R Max speed up to 6000+ MHz 2DPC 1R Max speed up to 6000+ MHz 2DPC 2R Max speed up to 5600+ MHz Supports Intel® XMP 3.0 OC Supports Dual Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Expansion Slots	3x PCIe x16 slots Supports x16/x0/x4, x8/x8/x4 PCI_E1 & PCI_E2 slots (From CPU) PCI_E1 supports up to PCIe 5.0 x16 PCI_E2 supports up to PCIe 5.0 x8 PCI_E3 (From Z690 chipset) ▫Supports up to PCIe 4.0 x4
Multi-GPU	Supports AMD® CrossFire™ Technology Supports NVIDIA® SLI™ Technology
Thunderbolt 4	Intel®JHL8540 Thunderbolt™ 4 Controller 2x Thunderbolt™ 4 (USB-C) ports on the back panel Supports up to 40Gbps transfer rate with Thunderbolt devices Supports up to 20Gbps transfer rate with USB4 devices Supports up to 10Gbps transfer rate with USB 3.2 devices Supports up to 5V/3A ,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display (need to connect the DisplayPort of the discrete graphics card to the Mini DisplayPort Input port on the back panel)
Onboard Graphics	1x Type-C Display port, supporting a maximum resolution of 4K 60Hz
Storage	6x SATA 6Gb/s ports (From Z690 chipset) SATA5~8 (From Z690 chipset) SATAA~B (From ASM1061) 5x M.2 slots (Key M) M2_1 slot (From CPU) Supports up to PCIe 4.0 x4 Supports 2260/ 2280/ 22110 storage devices M2_2 & M2_3 slots (From Z690 chipset) M2_2 slot supports up to PCIe 4.0 x4 M2_3 slot supports up to PCIe 3.0 x4 Supports 2260/ 2280 storage devices M2_4 & M2_5 1 slots (From Z690 chipset) Supports up to PCIe 4.0 x4 Supports up to SATA 6Gb/s M2_4 slot supports 2280/ 22110 storage devices M2_5 slot supports 2260/ 2280 storage devices M2_2~5 slots support Intel® Optane™ Memory Supports Intel® Smart Response Technology for Intel Core™ processors
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices 1 Supports RAID 0, RAID 1 , RAID 5 and RAID 10 for M.2 NVMe storage devices
USB	Intel® Z690 Chipset 2x USB3.2 Gen2x2 20Gbps ports (2 Type-C internal connectors) 4x USB 3.2 Gen 2 10Gbps ports (1 Type-C port on the back panel, 3 Type-A ports on the back panel) Hub-GL3590 4x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel ASM1074 4x USB 3.2 Gen 1 5Gbps Type-A ports available through the internal connecto Hub-GL850G 4x USB 2.0 Type-A ports available through the internal connectors
Audio	Realtek® ALC4082 Codec + ESS SABRE9018Q2C Combo DAC/HPA 7.1-Channel High Definition Audio Supports S/PDIF output
LAN	2x Intel® I225V 2.5Gbps LAN controllers
Wireless LAN & Bluetooth	Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz 1 (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3 2, FIPS, FISMA
Internal connectors	1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 5x M.2 slots (M-Key) 2x USB 3.2 Gen 2×2 20Gbps Type-C ports 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 3-pin Water Flow connector 2x 2-pin Thermal sensor connectors 1x TPM module connector 1x Tuning Controller connector
LED Feature	1x EZ LED Control switch 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1x 3-pin CORSAIR LED connector 4x EZ Debug LED 1x 2-Digit Debug Code LED
Back panel ports	1- Clear CMOS Button 2- 2.5G LAN 3- 2.5G LAN 4- USB 3.2 Gen 2 10Gbps (Type-A) 5- Thunderbolt 4 40Gbps (Type-C) 6- Wi-Fi / Bluetooth 7- HD Audio Connectors 8- Flash BIOS Button 9- USB 3.2 Gen 2 10Gbps (Type-C Display port) 10- USB 3.2 Gen 2 10Gbps (Type-A) 11- Mini DisplayPort Input (for Thunderbolt passthrough) 12- Optical S/PDIF-Out
Dimensions	12 in. x 9.6 in. (30.5 cm x 27.7 cm) E-ATX Form Factor

Add to wishlist

MSI MEG Z690 GODLIKE

Rated 4.20 out of 5

In stock

Add to cart

Processor	Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors 1 Processor socket LGA1700
Chipset	Intel® Z690 Chipset
Memory	4x DDR5 memory slots, supporting up to 192GB 1 Supports 1R 5600 MHz (by JEDEC & POR) Max. overclocking frequency: 1DPC 1R Max speed up to 6666+ MHz 1DPC 2R Max speed up to 6000+ MHz 2DPC 1R Max speed up to 6000+ MHz 2DPC 2R Max speed up to 5600+ MHz Supports Intel® XMP 3.0 OC Supports Dual Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Expansion Slots	3x PCIe x16 slots – Supports x16/x0/x4, x8/x8/x4 – PCI_E1 supports PCIe 5.0 x16 (From CPU) (1) – PCI_E2 supports PCIe 5.0 x8 (From CPU)(2) – PCI_E3 supports PCIe 4.0 x4 (From Z690 chipset)(2)
Multi-GPU	Supports AMD® CrossFire™ Technology Supports NVIDIA® SLI™ Technology
Thunderbolt 4	Intel®JHL8540 Thunderbolt™ 4 Controller 2x Thunderbolt™ 4 (USB-C) ports on the back panel Supports up to 40Gbps transfer rate with Thunderbolt devices Supports up to 20Gbps transfer rate with USB4 devices Supports up to 10Gbps transfer rate with USB 3.2 devices Supports up to 5V/3A ,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display (need to connect the DisplayPort of the discrete graphics card to the Mini DisplayPort Input port on the back panel)
Storage	– 6x SATA 6Gb/s ports (From Z690 chipset) SATA5~8 (From Z690 chipset) SATAA~B (From ASM1061) – 6x M.2 slots (Key M) M2_1 slot (From CPU) Supports up to PCIe 4.0 x4 Supports 2260/ 2280/ 22110 storage devices M2_2 slot (From Z690 chipset) Supports up to PCIe 4.0 x4 Supports 2260/ 2280 storage devices M2_3 slot (From CPU) Supports up to PCIe 5.0 x4 Supports 2260/ 2280/ 22110 storage devices M2_4 slot (From Z690 chipset) Supports up to PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2260/ 2280 storage devices M2_5 slot (From Z690 chipset) Supports up to PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2260/ 2280 storage devices M2_6 slot (From Z690 chipset) Supports up to PCIe 3.0 x4 Supports 2260/ 2280/ 22110 storage devices M2_2, M2_4, M2_5 and M2_6 slots support Intel® Optane™ Memory Supports Intel® Smart Response Technology for Intel Core™ processors
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 , RAID 5 and RAID 10 for M.2 NVMe storage devices
USB	Intel® Z690 Chipset 2x USB 3.2 Gen 2×2 20Gbps Type-C internal connectors 4x USB 3.2 Gen 2 10Gbps ports on the back panel Hub-GL3590 4x USB 3.2 Gen 2 10Gbps ports on the back panel ASM1074 4x USB 3.2 Gen 1 5Gbps ports through internal USB connectors Hub-GL850G 4x USB 2.0 ports through internal USB connectors
Audio	Realtek® ALC4082 Codec + ES9218PQ Combo DAC/HPA 7.1-Channel High Definition Audio Supports S/PDIF output
LAN	1x Aquantia® AQC113CS 10Gbps LAN controller 1x Intel® I225-V 2.5Gbps LAN controller
Wireless LAN & Bluetooth	Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz 1 (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3 2, FIPS, FISMA
Internal connectors	1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 6x M.2 slots (M-Key) 2x USB 3.2 Gen 2×2 20Gbps Type-C ports 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 8x 4-pin system fan connectors 1x Water Flow meter connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 2x 2-pin Thermal Sensors connectors 1xTPM module connector 1x Tuning Controller connector
LED Feature	1x 2-Digit Debug Code LED 4x EZ Debug LED 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1x 3-pin CORSAIR LED connector
Back panel ports	Clear CMOS Button 2.5G LAN 10G Super LAN Thunderbolt 4 40Gbps (Type-C) Wi-Fi / Bluetooth HD Audio Connectors Flash BIOS Button USB 3.2 Gen2 10Gbps (Type-A) M-VISION Dashboard Port Mini DisplayPort Input (for Thunderbolt passthrough) Optical S/PDIF-Out
Dimensions	12 in. x 12 in. (30.5 cm x 31.0 cm) E-ATX Form Factor
Mounting	9 mounting holes

Add to wishlist

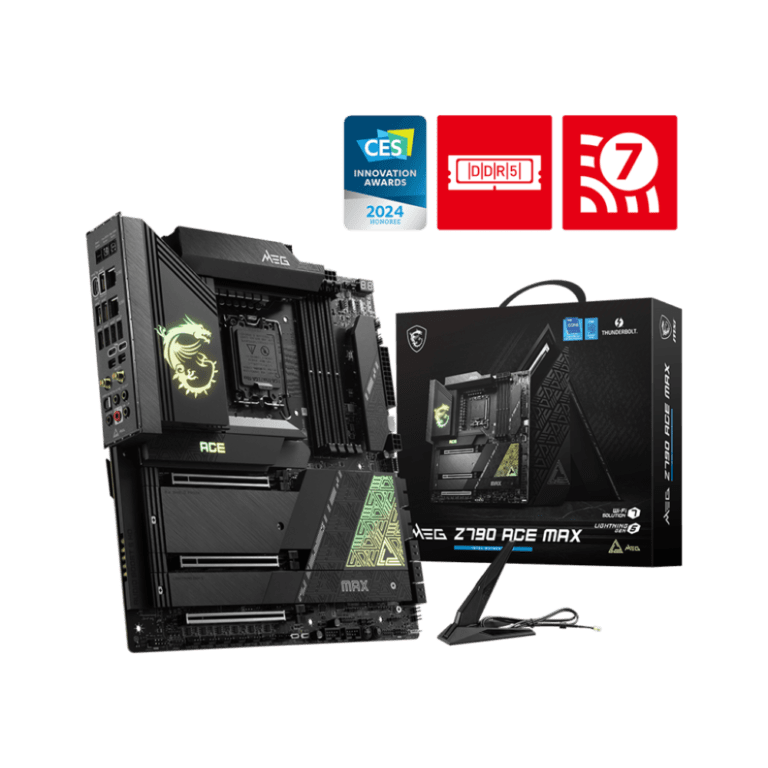

MSI MEG Z790 ACE MAX

Rated 4.20 out of 5

In stock

Add to cart

Chipset	INTEL Z790
INTEL Z790	Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6800+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 6000+ MHz Supports Intel® XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Onboard Graphics	1x Type-C DisplayPort Supports a maximum resolution of 4K 60Hz
Slot	3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Audio	Realtek® ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA 7.1-Channel USB High Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel
Storage	5x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices M.2_4 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260 devices 6x SATA 6G
Multi-GPU	AMD MULTI-GPU Support
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Onboard Thunderbolt	Thunderbolt chip JHL8540 Thunderbolt Resource JHL8540 2x Thunderbolt4 ports (Rear) 2x Thunderbolt4 (USB-C) ports Q’ty Supports up to 40Gbps transfer rate with Thunderbolt devices Supports up to 20Gbps transfer rate with USB4 devices Supports up to 10Gbps transfer rate with USB 3.2 devices Supports up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display (need to connect the DisplayPort of the discrete graphics card to the Mini DisplayPort Input port on the back panel)
USB	4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 7x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 2x USB 20Gbps Type C (Front)
LAN	2x Intel® 2.5Gbps LAN
Internal IO	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Pump Fan 5x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Slow Mode Booting Jumper(JSLOW) 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) V-check point 4x USB 2.0 ports 2x USB 5Gbps Type A ports 2x USB 20Gbps Type C ports
WIRELESS LAN & BLUETOOTH	Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM
LED FEATURE	1x EZ LED Control switch 4x EZ Debug LED 1x 2-Digit Debug Code LED
BACK PANEL PORTS	1- Clear CMOS Button 2- Flash BIOS Button 3- 2.5G LAN 4- 2.5G LAN 5- Thunderbolt 4 40Gbps (Type-C) 6- Wi-Fi / Bluetooth 7- Audio Connectors 8- Smart Button 9- USB 3.2 Gen 2 10Gbps (Type-C Display port) 10- USB 3.2 Gen 2 10Gbps (Type-A) 11- Mini DisplayPort Input (for Thunderbolt passthrough) 12- Optical S/PDIF-Out
OPERATING SYSTEM	Support for Windows® 11 64-bit
PCB Info	E-ATX 277mmx304.8mm

Add to wishlist

MSI MEG Z790 GODLIKE MAX

Rated 4.22 out of 5

In stock

Add to cart

Chipset	INTEL Z790
CPU	Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6800+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 6000+ MHz Supports Intel® XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Slot	2x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)
Audio	Realtek® ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA 7.1-Channel USB High Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel
Storage	7x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices M.2_4 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_5 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260 devices M.2_6 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_7 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 6x SATA 6G
Multi-GPU	AMD MULTI-GPU Support
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Onboard Thunderbolt	Thunderbolt chip JHL8540 Thunderbolt Resource JHL8540 2x Thunderbolt4 ports (Rear) 2x Thunderbolt4 (USB-C) ports Q’ty Supports up to 40Gbps transfer rate with Thunderbolt devices Supports up to 20Gbps transfer rate with USB4 devices Supports up to 10Gbps transfer rate with USB 3.2 devices Supports up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display (need to connect the DisplayPort of the discrete graphics card to the Mini DisplayPort Input port on the back panel)
USB	4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 7x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 2x USB 20Gbps Type C (Front)
LAN	Marvell® AQC113CS-B1-C 10Gbps LAN Intel® 2.5Gbps LAN
Internal IO	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Pump Fan 7x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Slow Mode Booting Jumper(JSLOW) 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) V-check point 4x USB 2.0 ports 4x USB 5Gbps Type A ports 2x USB 20Gbps Type C ports
WIRELESS LAN & BLUETOOTH	Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM
LED FEATURE	1x EZ LED Control switch 4x EZ Debug LED 1x 2-Digit Debug Code LED
BACK PANEL PORTS	Clear CMOS Button Flash BIOS Button 2.5G LAN 10G Super LAN Thunderbolt 4 40Gbps (Type-C) Wi-Fi / Bluetooth Audio Connectors Smart Button USB 3.2 Gen 2 10Gbps (Type-C) USB 3.2 Gen 2 10Gbps (Type-A) Mini DisplayPort Input (for Thunderbolt passthrough) Optical S/PDIF-Out
OPERATING SYSTEM	Support for Windows® 11 64-bit
PCB Info	E-ATX 310mmx304.8mm

Add to wishlist

MSI MEG Z890 GODLIKE

Rated 4.19 out of 5

In stock

Add to cart

Chipset	INTEL Z890
CPU	Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 9200 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 4800+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM
Onboard Graphics	2x Type-C DisplayPort Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz
Slot	2x PCI-E x16 slot 1x PCI-E x4 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Audio	Realtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA 7.1-Channel USB High-Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel
Storage	8x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices M.2_6 Source (From CPU+Chipset) supports up to PCIe 5.0 x4 + PCIe 4.0 x4 , supports 2280/2242 devices 4x SATA 6G M.2_1 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_2 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Onboard Thunderbolt	1x Thunderbolt4 ports (Rear) 1x Thunderbolt4 ports (Front) Support up to 40Gbps transfer rate with Thunderbolt devices Support up to 20Gbps transfer rate with USB4 devices Support up to 10Gbps transfer rate with USB 3.2 devices Support up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Support up to 8K display
USB	4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 8x USB 10Gbps Type A (Rear) 5x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Rear) 1x USB 20Gbps Type C (Front)
LAN	4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 8x USB 10Gbps Type A (Rear) 5x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Rear) 1x USB 20Gbps Type C (Front)
Internal IO	1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Combo Fan (Pump_Sys Fan) 7x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Slow Mode Booting Jumper(JSLOW) 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) V-check point 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
WIRELESS LAN & BLUETOOTH	Intel® Killer™ BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM
LED FEATURE	1x Dynamic Dashboard III 1x EZ Digit Debug LED 1x EZ LED Control switch
BACK PANEL PORTS	1- USB 10Gbps (Type-A) 2- Flash BIOS Button 3- Clear CMOS Button 4- Smart Button 5- 10G LAN 6- 5G LAN 7- Wi-Fi / Bluetooth 8- HD Audio Connectors 9- Thunderbolt 4 40Gbps (Type-C) 10- USB 10Gbps (Type-C) 11- USB 20Gbps (Type-C) 12- USB 10Gbps (Type-C) 13- USB 10Gbps (Type-A) 14- Optical S/PDIF-Out
OPERATING SYSTEM	Support for Windows® 11 64-bit
PCB Info	E-ATX 277mmx304.8mm
