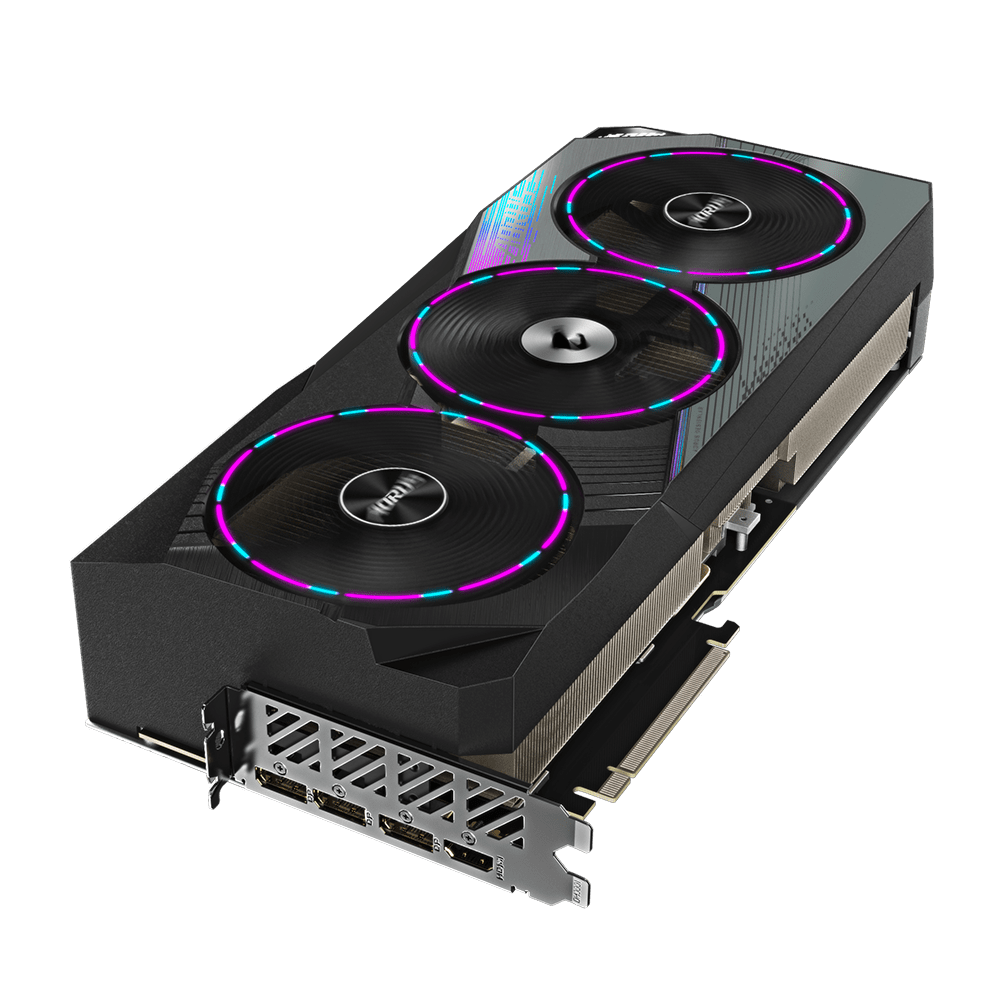

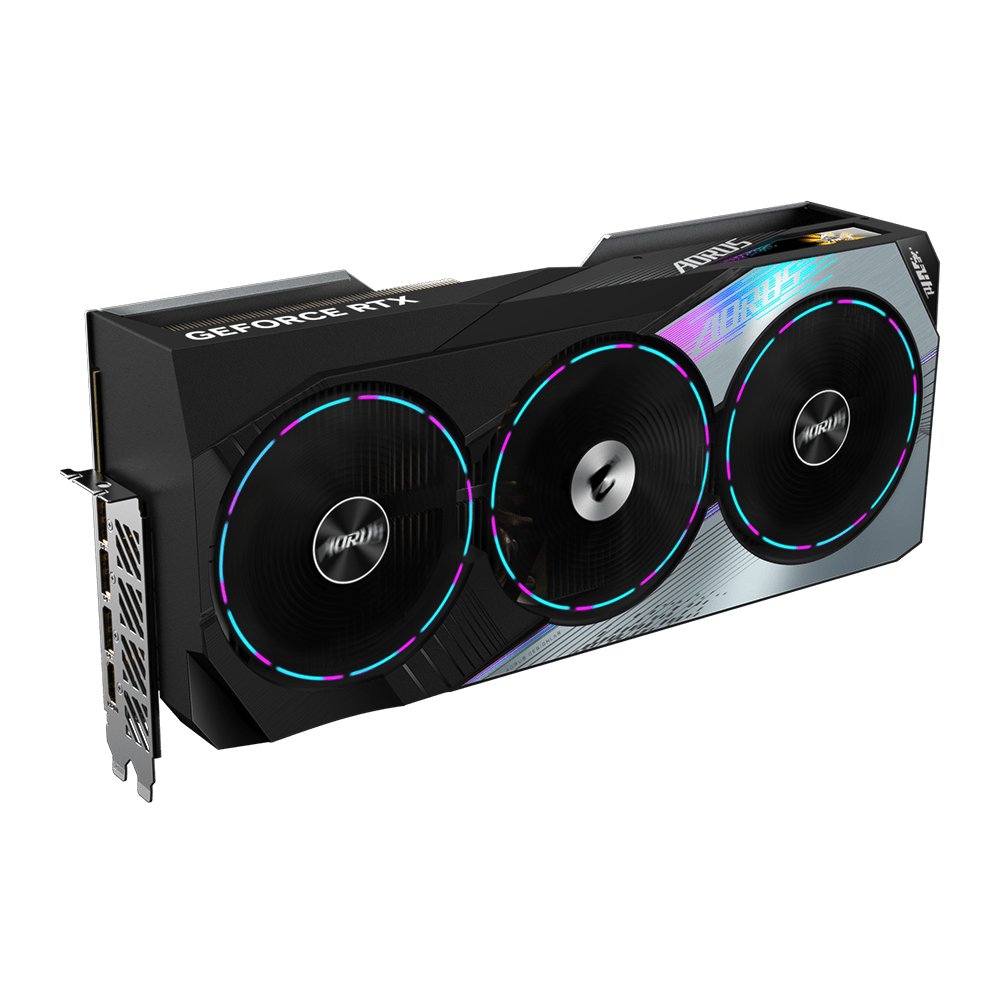

AORUS GeForce RTX™ 4090 MASTER 24G

(27 customer reviews)

The AORUS GeForce RTX™ 4090 MASTER 24G features NVIDIA Ada Lovelace architecture, 24GB GDDR6X memory, and advanced cooling technology. With real-time ray tracing and DLSS 3, it delivers stunning visuals and AI-accelerated performance. Get it now at Gozmax

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

Original price was: £2,399.00.Current price is: £1,999.00.

Compare
Add to wishlist
182 People watching this product now!

Payment Methods:

Description

The AORUS GeForce RTX™ 4090 MASTER 24G leverages NVIDIA’s state-of-the-art Ada Lovelace architecture and AORUS’s meticulous design to provide a top-tier user experience. This graphics card is built to handle the most intensive tasks with ease, delivering smooth and immersive performance in a wide range of applications.

Core Clock:
Core Clock: 2550 MHz (Reference Card: 2520 MHz) The elevated core clock speed ensures rapid processing and exceptional performance in demanding applications and games. The increased clock speed allows for faster rendering, smoother gameplay, and improved overall responsiveness.

CUDA® Cores:
CUDA® Cores: 16384 With a staggering number of CUDA cores, this graphics card offers unparalleled parallel processing power. CUDA cores handle complex computations, enabling efficient multitasking and accelerating tasks like rendering, AI processing, and simulations.

Memory:
Memory Clock: 21 Gbps

Memory Size: 24GB

Memory Type: GDDR6X

Memory Bus: 384-bit These memory specifications ensure high bandwidth and large capacity, facilitating smooth performance in graphics-intensive tasks. The GDDR6X memory type provides superior data transfer rates, enhancing the overall performance of the card.

Card Bus:
Card Bus: PCI-E 4.0 The PCI-E 4.0 interface offers faster data transfer rates compared to previous generations, improving overall performance and ensuring compatibility with modern motherboards. This interface supports the high bandwidth requirements of the graphics card, allowing for efficient data transfer and communication.

Resolution and Multi-view:
Digital Max Resolution: 7680×4320 This capability allows for ultra-high-definition display setups, ideal for professionals who require precise and detailed visuals, and gamers seeking an immersive experience.

Multi-view: 4 The graphics card supports up to 4 multi-view displays, providing an expansive and flexible workspace perfect for multi-monitor setups. This feature is beneficial for tasks that require multiple screens, such as video editing, 3D rendering, and complex simulations.

Card Size and Form Factor:
Card Size: L=358.5 mm, W=162.8 mm, H=75.1 mm

PCB Form: ATX These dimensions ensure compatibility with a wide range of cases and setups. The ATX form factor provides a stable and robust platform for the graphics card, ensuring it can fit into most systems without sacrificing performance.

Graphics API Support:
DirectX: 12 Ultimate

OpenGL: 4.6 The support for the latest graphics APIs ensures compatibility with modern games and applications, providing advanced features and enhanced graphics quality. This support allows for stunning visuals and improved rendering capabilities, meeting the high standards of today’s software.

Power Requirements:
Recommended PSU: 1000W

Power Connectors: 16 pin *1 These power requirements ensure that the graphics card receives sufficient power for optimal performance and stability. The robust power delivery system supports the high-performance demands of the card, ensuring reliable operation under load.

Output Interfaces:
DisplayPort 1.4a: 3 ports

HDMI 2.1a: 1 port These interfaces provide versatile connectivity options for a wide range of displays and devices, supporting high resolutions and refresh rates. The inclusion of multiple DisplayPort and HDMI ports ensures flexibility in connecting various monitors and peripherals.

Additional Features:
The AORUS GeForce RTX™ 4090 MASTER 24G includes several features designed to enhance user experience and performance:

RGB Fusion 2.0: Provides customizable lighting effects, allowing users to personalize their setup.

Dual BIOS: Offers a choice between performance and silent mode, giving users control over noise levels and power consumption.

Advanced Cooling Solutions: Ensures optimal thermal performance, maintaining high clock speeds and stability even during intensive tasks.

Accessories:
Quick Guide: Provides easy-to-follow instructions for installation and setup.

Warranty Registration: Ensures your product is protected and registered.

Anti-Sag Bracket: Helps to maintain the integrity and stability of the graphics card, preventing sagging over time.

Anti-Sag Bracket Installation Guide: Detailed instructions for installing the anti-sag bracket.

One 16-pin to Four 8-pin Power Adaptor: Offers flexible power supply connections, ensuring compatibility with various power supply units.

The AORUS GeForce RTX™ 4090 MASTER 24G is designed to deliver top-tier performance with advanced features, making it an excellent choice for gamers, content creators, and professionals. With its high clock speeds, ample memory, and robust build quality, this graphics card ensures a smooth and immersive experience across a variety of applications.

Whether you’re diving into the latest AAA games, engaging in complex 3D rendering, or performing intensive computational tasks, the AORUS GeForce RTX™ 4090 MASTER 24G provides the power and efficiency you need to excel.

Specification

Core Clock

2550 MHz (Reference Card: 2520 MHz)
CUDA® Cores

16384
Memory Clock

21 Gbps
Memory Size

24 GB
Memory Type

GDDR6X
Memory Bus

384 bit
Card Bus

PCI-E 4.0
Digital max resolution

7680×4320
Multi-view

4
Card size

L=358.5 W=162.8 H=75.1 mm
PCB Form

ATX
DirectX

12 Ultimate
OpenGL

4.6
Recommended PSU

1000W
Power Connectors

16 pin * 1
Output

DisplayPort 1.4a *3
HDMI 2.1a *1
Accessories

1. Quick guide
2. Warranty registration
3. Anti-sag bracket
4. Anti-sag bracket installation guide
5. One 16-pin to four 8-pin power adaptor
