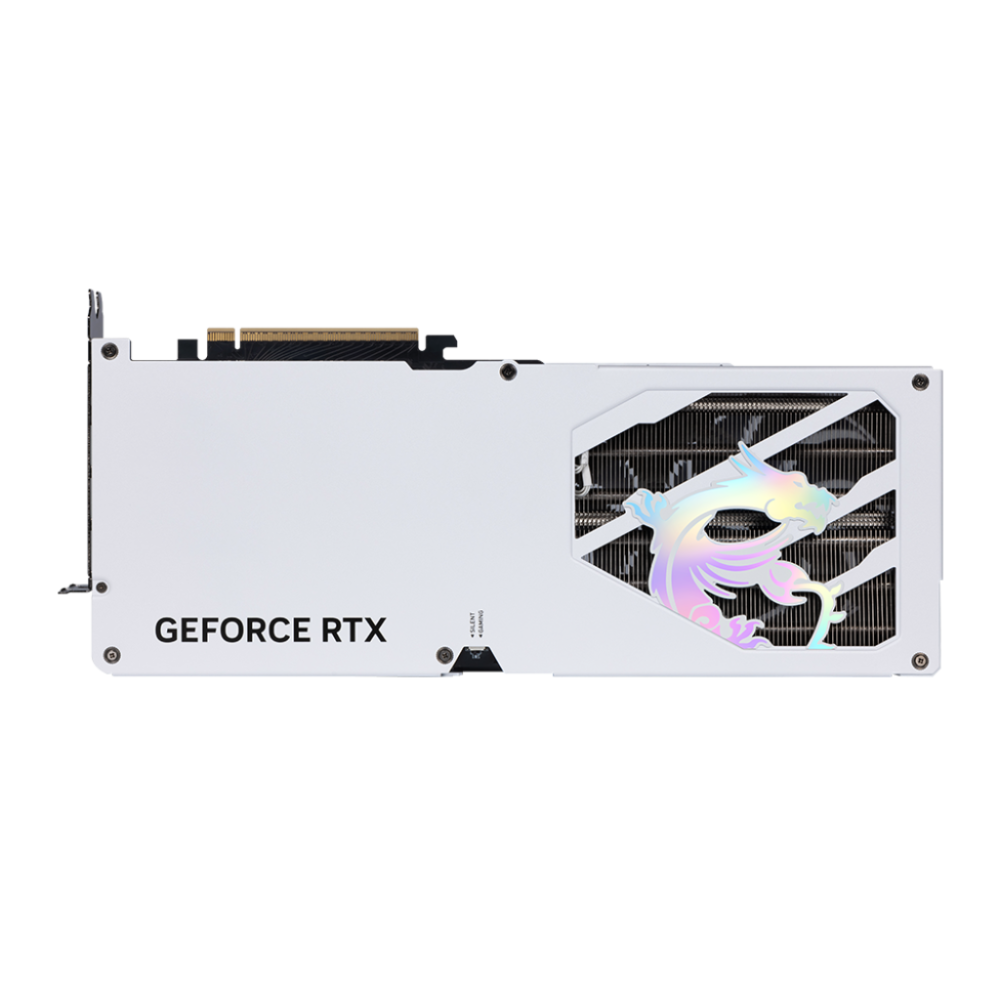

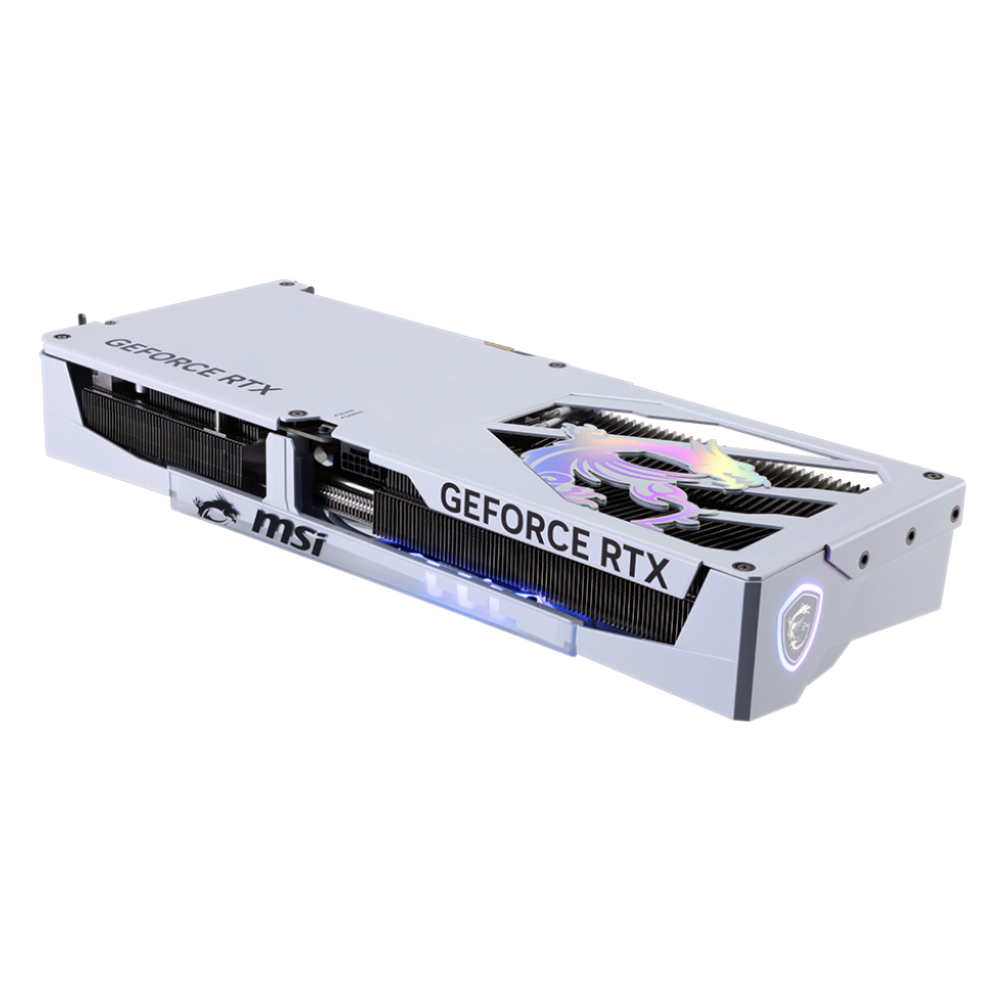

GeForce RTX™ 5080 16G GAMING TRIO OC WHITE

The GeForce RTX™ 5080 GAMING TRIO OC WHITE delivers premium performance with 16GB GDDR7, advanced cooling, and an elegant white design for creators and gamers.

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

£1,599.99

Compare
Add to wishlist
138 People watching this product now!

Payment Methods:

Description

The GeForce RTX™ 5080 16G GAMING TRIO OC WHITE combines powerful performance with a sophisticated white design, making it the perfect choice for gamers and creators looking to build stunning setups. Powered by NVIDIA’s Ada Lovelace architecture, this GPU delivers superior graphics, exceptional AI capabilities, and cutting-edge ray tracing for the ultimate gaming and creative experience.

Equipped with 16GB of GDDR7 memory, an overclocked boost clock of 2775MHz, and the advanced GAMING TRIO cooling system, the RTX 5080 ensures smooth gameplay and efficient cooling during intensive workloads.

Key Features:

Factory Overclocked: Boost clock speeds for maximum performance.
White Aesthetic: Perfect for clean, elegant PC builds.
GAMING TRIO Cooling: Triple-fan system with optimized airflow and low noise levels.
16GB GDDR7 Memory: Handles the most demanding games and professional tasks effortlessly.
PCIe 5.0 Support: Future-proof connectivity for high-speed performance.
4K & Beyond: Experience unmatched visuals with 4K and 8K capabilities.
Technical Specifications:

Graphics Processor: NVIDIA GeForce RTX™ 5080
Core Clock: 2775MHz (Reference: 2617MHz)
CUDA Cores: TBD
Memory Clock: 30Gbps
Memory: 16GB GDDR7
Memory Bus: 256-bit
Card Bus: PCIe 5.0
Max Digital Resolution: 7680 x 4320
Multi-View Support: 4 Displays
DirectX Support: DirectX 12 API
OpenGL: OpenGL 4.6
Recommended PSU: 850W
Power Connectors: 16-pin (1x 12VHPWR)
Cooling System: Triple-fan GAMING TRIO design with TORX FAN 5.0 for advanced cooling.
Outputs:
3x DisplayPort 2.1b
1x HDMI 2.1b
Card Dimensions: L=340mm, W=140mm, H=70mm
Included Accessories:

VGA manual
Warranty notice
12VHPWR to 3x PCIe 8-pin adapter

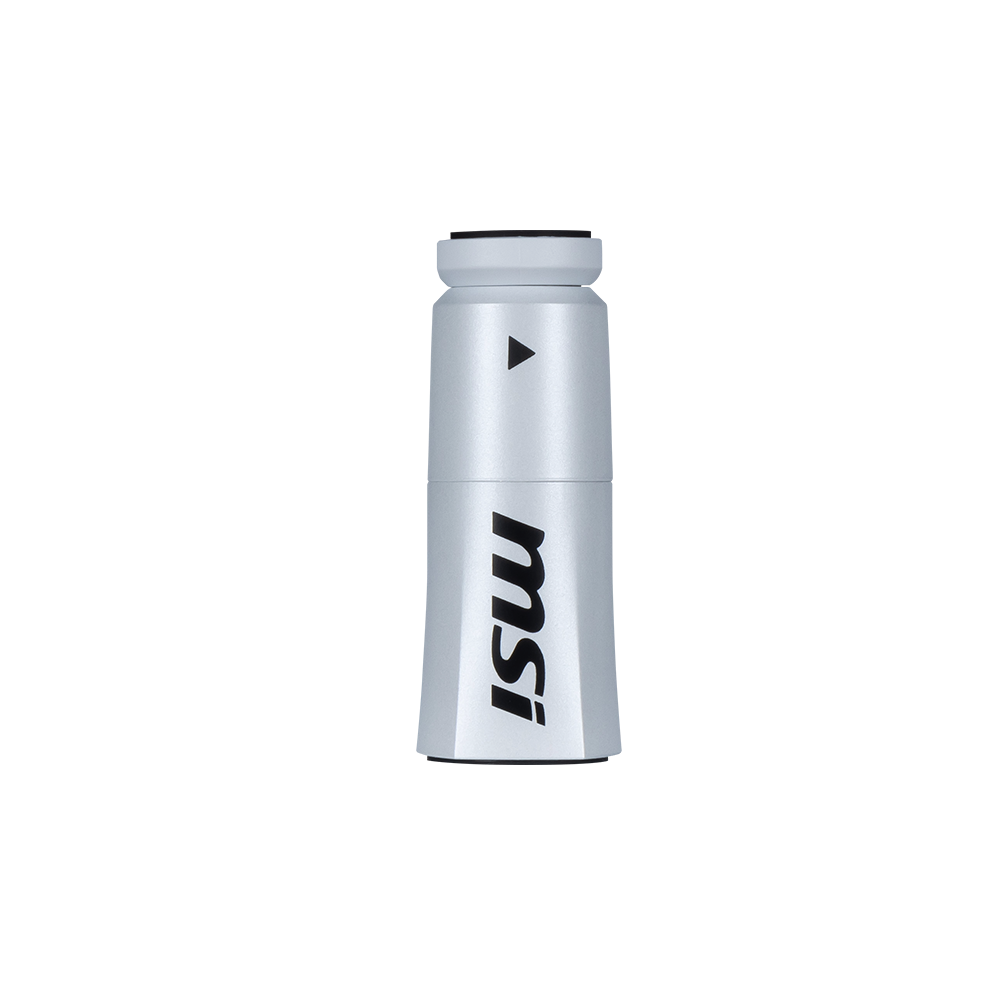

White support bracket for stability
Why Choose the RTX 5080 GAMING TRIO OC WHITE?
Whether you’re building a sleek white-themed PC or seeking cutting-edge performance, the RTX 5080 GAMING TRIO OC WHITE is the perfect GPU. It combines style, speed, and advanced cooling to handle gaming, rendering, and AI-powered workflows effortlessly.

Specification

Ray Tracing GPU

GeForce RTX™ 5080 16G GAMING TRIO OC WHITE
Model Name

G5080-16GTCW
Graphics Processing Unit

NVIDIA® GeForce RTX™ 5080
Interface

PCI Express® Gen 5
Core Clocks

Extreme Performance: 2715 MHz (MSI Center)
Boost: 2700 MHz (GAMING & SILENT Mode)
CUDA® CORES

10752 Units
Memory Speed

30 Gbps
Memory

16GB GDDR7
Memory Bus

256-bit
Output

DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
HDCP Support

Y
Power consumption

360 W
Power connectors

16-pin x 1
Recommended PSU

850 W
Card Dimension (mm)

338 x 140 x 50 mm
Weight (Card / Package)

1362 g / 1885 g
DirectX Version Support

12 Ultimate
OpenGL Version Support

4.6
Maximum Displays

4
G-SYNC® technology

Y
Digital Maximum Resolution

7680 x 4320
