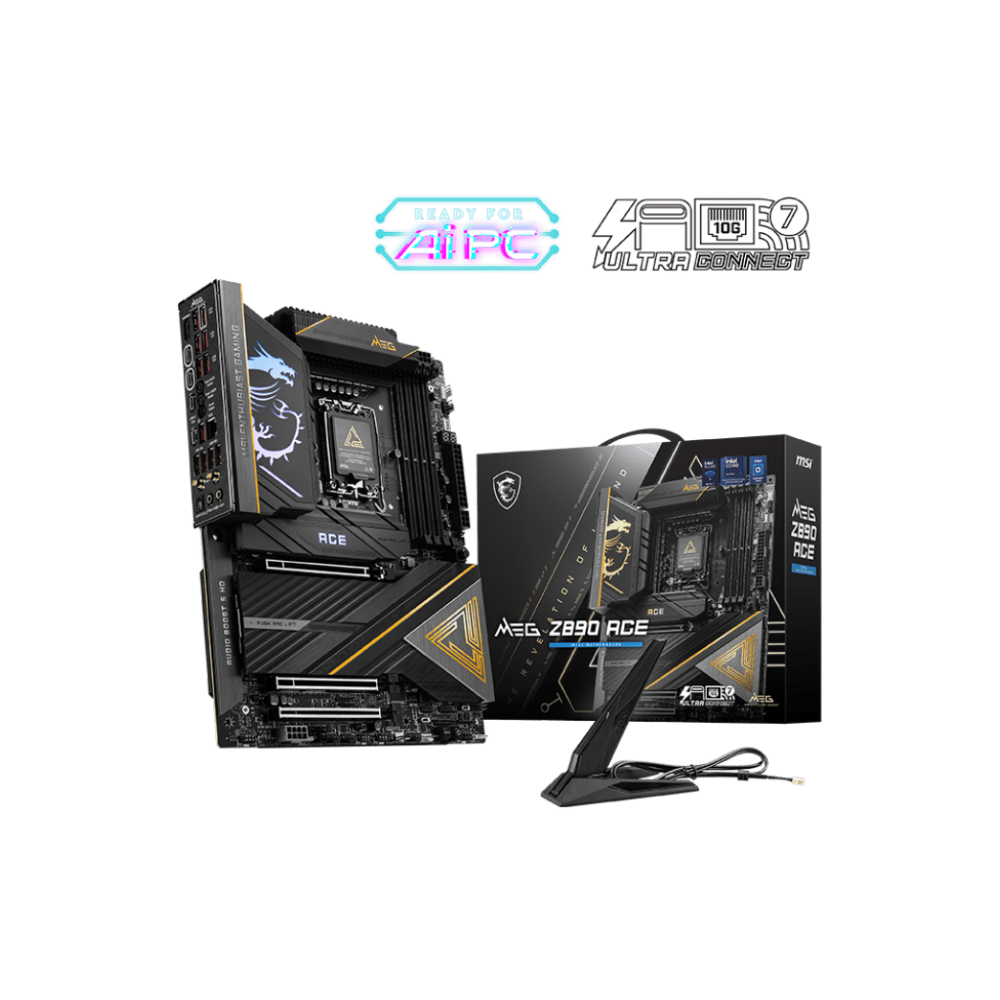

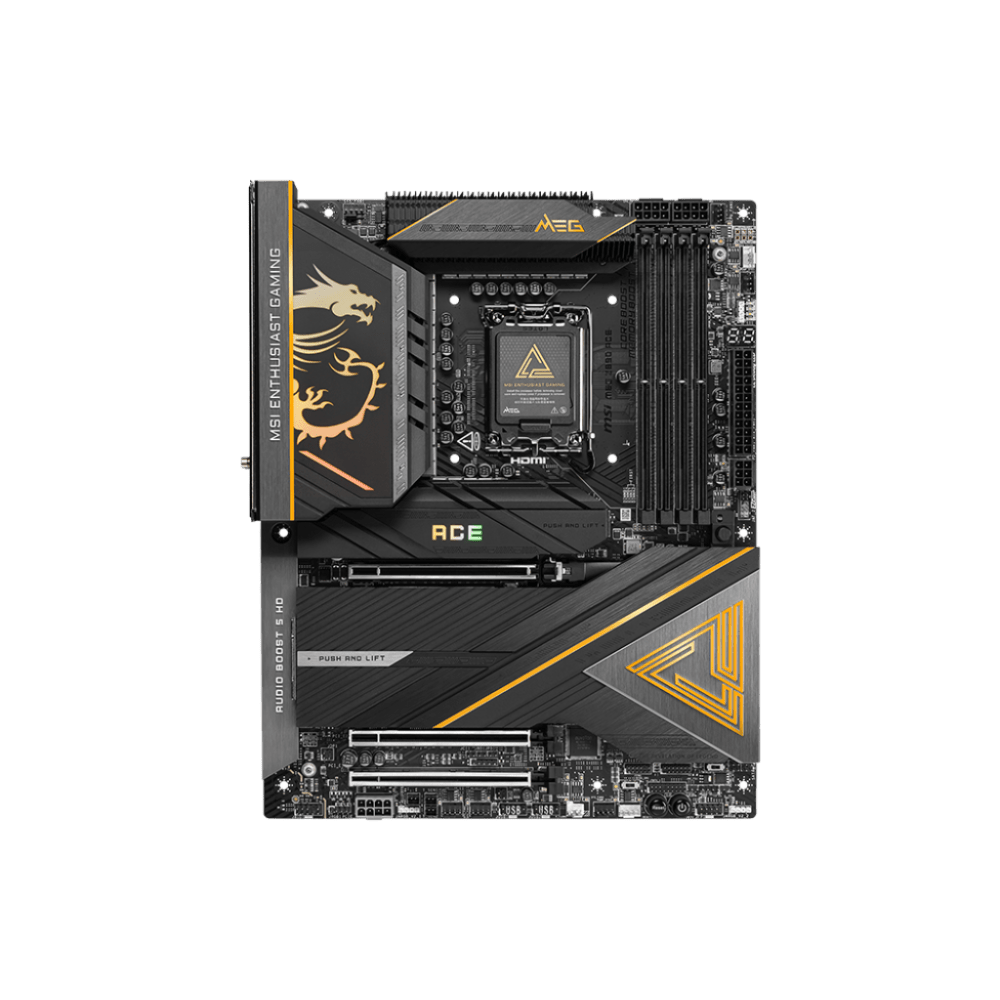

MSI MEG Z890 ACE

(17 customer reviews)

The MSI MEG Z890 ACE is a high-performance gaming motherboard designed for ultimate gaming and AI performance. Features Intel Core Ultra support, DDR5 memory, Thunderbolt 5, Dynamic Dashboard III, and M.2 XPANDER-Z Slider Gen5. Get it now at Gozmax.com for £699.99.

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

Original price was: £849.00.Current price is: £709.00.

Compare
Add to wishlist
12 People watching this product now!

Payment Methods:

Description

The MSI MEG Z890 ACE is another high-end motherboard designed for Intel Core Ultra Processors (Series 2) and LGA 1851 socket. Here are some of its key specifications:

Chipset: Intel Z890, providing excellent performance and compatibility.

Socket: LGA 1851, supporting Intel Core Ultra Processors (Series 2).

Memory Support: Up to 256GB of DDR5 memory across four DIMM slots, with support for speeds up to 9200+ MHz (OC).

PCIe Slots: Three PCIe 5.0 x16 slots for multiple graphics cards.

M.2 Slots: Five M.2 slots, including one PCIe 5.0 x4, two PCIe 4.0 x4/SATA, and two PCIe 4.0 x4 slots.

SATA Ports: Four SATA 6Gb/s ports for ample storage options.

USB Ports: Extensive connectivity with two USB 3.2 Gen 2 ports (one Type-C and one Type-A), and 13 USB 3.2 Gen 1 ports (11 Type-A and two Type-C).

Networking: Features Marvell AQC113CS-B1-C 10Gbps LAN for fast and stable wired connections, and Intel Wi-Fi 7 for high-speed wireless connectivity.

Power Design: Equipped with a 24+2+1 phase digital power design with 110A power stage, ensuring stable power delivery for optimal performance.

Cooling: Advanced cooling solutions including double-sided FROZR metal heat sink, extended heatsink design, and an aluminum IO cover to keep the system running cool under heavy loads.

Form Factor: E-ATX, suitable for larger gaming cases.

Audio: High-quality audio with the Realtek ALC4082 codec, featuring optical S/PDIF output for an immersive sound experience.

Other Features: Enhanced features like PCIe Steel Armor, DDR5 Boost, and Direct 24+2+1 Power for superior performance and stability.

The MSI MEG Z890 ACE is designed to deliver excellent performance, stability, and connectivity, making it an ideal choice for building a high-end gaming or productivity PC.

Specification

Chipset

INTEL Z890
CPU

Supports Intel® Core™ Ultra Processors (Series 2)
LGA 1851
Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support 9200 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 9200+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 4800+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s

Supports Intel® POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM
Onboard Graphics

1x HDMI™
Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz*
2x Type-C DisplayPort
Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
Slot

3x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

• PCI_E1 support manual BIOS adjustment to X8+X8/X8+X4+X4
• PCI_E2 support manual BIOS adjustment to X4+X4
Audio

Realtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA
7.1-Channel USB High-Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel
Storage

5x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 Source (From CPU+Chipset) supports up to PCIe 5.0 x4 + PCIe 4.0 x4 , supports 22110/2280 devices
M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices
4x SATA 6G
RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Onboard Thunderbolt

2x Thunderbolt4 ports (Rear)
Support up to 40Gbps transfer rate with Thunderbolt devices
Support up to 20Gbps transfer rate with USB4 devices
Support up to 10Gbps transfer rate with USB 3.2 devices
Support up to 5V/3A,15W power charging
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
Support up to 8K display
USB

4x USB 2.0 (Front)
4x USB 5Gbps Type A (Front)
11x USB 10Gbps Type A (Rear)
2x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)
LAN

1x Marvell® AQC113CS 10Gbps LAN
Internal IO

1x Thunderbolt5 card connector(JTBT5, support RTD3)
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x Front Type-C Quick Charge Connector(PD_PWR1)
1x CPU Fan
2x Combo Fan (Pump_Sys Fan)
5x System Fan
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Water Flow connector
1x Slow Mode Booting Jumper(JSLOW)
1x Front Audio (JAUD)
2x Thermal Sensor connectors(T_SEN)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
V-check point
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports
WIRELESS LAN & BLUETOOTH

Intel® Killer™ BE1750x Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth® 5.4**, MLO, 4KQAM
LED FEATURE

4x EZ Debug LED
1x EZ Digit Debug LED
1x EZ LED Control switch
BACK PANEL PORTS

1- USB 10Gbps (Type-A)
2- Flash BIOS Button
3- Clear CMOS Button
4- Smart Button
5- 10G LAN
6- Wi-Fi / Bluetooth
7- HD Audio Connectors
8- HDMI™ 2.1 Port
9- Thunderbolt™ 4 40Gbps (Type-C)
10- USB 10Gbps (Type-C)
11- USB 10Gbps (Type-A)
12- Optical S/PDIF-Out
OPERATING SYSTEM

Support for Windows® 11 64-bit
PCB Info

ATX
243.84mmx304.8mm
