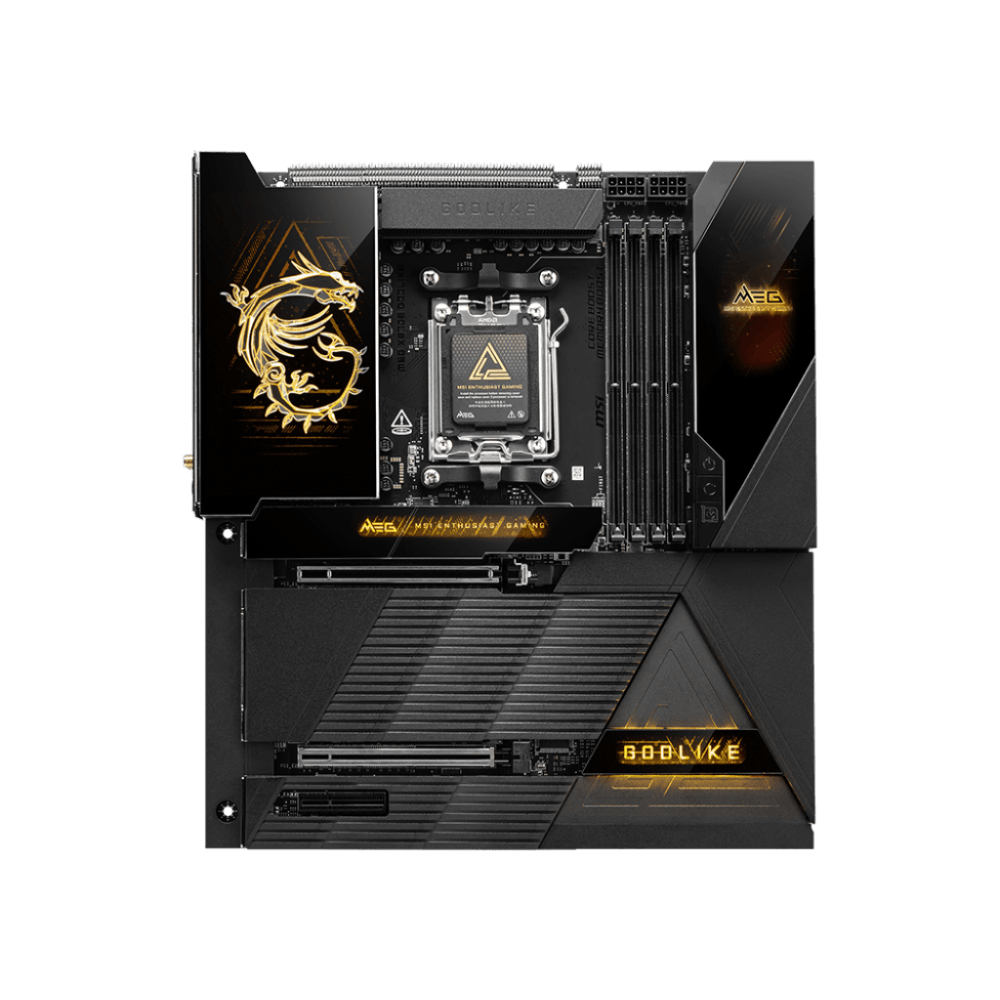

MSI MEG X870E GODLIKE

(17 customer reviews)

The MSI MEG X870E GODLIKE is a high-end gaming motherboard designed for ultimate performance. Features AMD Ryzen support, DDR5 memory, Dynamic Dashboard III, M.2 XPANDER-Z Slider Gen5, and ultra-connect options. Get it now at Gozmax.com

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

Original price was: £1,199.00.Current price is: £1,099.00.

Compare
Add to wishlist
62 People watching this product now!

Payment Methods:

Description

MSI MEG X870E GODLIKE
The MSI MEG X870E GODLIKE is a high-end motherboard designed for AMD Ryzen 9000, 8000, and 7000 Series processors. Here are some of its key specifications:

Chipset: AMD X870E, providing excellent performance and compatibility.

Socket: AM5, supporting AMD Ryzen 9000/8000/7000 Series processors.

Memory Support: Up to 256GB of DDR5 memory across four DIMM slots, with support for speeds up to 8400+ MHz (OC).

PCIe Slots: Two PCIe 5.0 x16 slots for multiple graphics cards.

M.2 Slots: Seven M.2 slots, including two PCIe 5.0 x4, two PCIe 4.0 x4/SATA, and three PCIe 4.0 x4 slots.

SATA Ports: Six SATA 6Gb/s ports for ample storage options.

USB Ports: Extensive connectivity with four USB 3.2 Gen 2 ports (one Type-C and three Type-A), and four USB 2.0 ports.

Networking: Features Marvell AQC113CS-B1-C 10Gbps LAN for fast and stable wired connections, and Wi-Fi 7 for high-speed wireless connectivity.

Power Design: Equipped with a 24+2+1 phase digital power design with 105A power stage, ensuring stable power delivery for optimal performance.

Cooling: Advanced cooling solutions including double-sided FROZR metal heat sink, extended heatsink design, and an aluminum IO cover to keep the system running cool under heavy loads.

Form Factor: E-ATX, suitable for larger gaming cases.

Audio: High-quality audio with the Realtek ALC4082 codec, featuring optical S/PDIF output for an immersive sound experience.

Other Features: Enhanced features like PCIe Steel Armor, DDR5 Boost, and Direct 24+2+1 Power for superior performance and stability.

The MSI MEG X870E GODLIKE is designed to deliver excellent performance, stability, and connectivity, making it an ideal choice for building a high-end gaming or productivity PC.

Specification

Chipset

AMD X870E
CPU

Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 9000 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8400+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s

Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only
Onboard Graphics

2x Type-C DisplayPort
USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz
Slot

2x PCI-E x16 slot
1x PCI-E x4 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

PCI_E1 & PCI_E2 slots
• Supports up to PCIe 5.0 x16/ x0 or x8/ x8 (For Ryzen™9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x8/ x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports up to PCIe 4.0 x4/ x0 (For Ryzen™ 8500/ 8300 Series processors)
PCI_E3 slot
• Supports up to PCIe 4.0 x4
Audio

Realtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA
7.1-Channel USB High-Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel
Storage

7x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
M.2_1 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices
M.2_2 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices

M.2_1:
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
M.2_2:
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors.
M2_4:
PCI_E3 slot will run at x2 speed when installing device in the M2_4 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_4 slot.
RAID

•Supports RAID 0, RAID 1 and Raid 10 for SATA storage devices
•Supports RAID 0, RAID 1 and Raid 10 for M.2 NVMe storage devices
USB

4x USB 2.0 (Front)
4x USB 5Gbps Type A (Front)
8x USB 10Gbps Type A (Rear)
5x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Front)
2x USB 40Gbps Type C (Rear)
LAN

1x Marvell® AQC113CS 10Gbps LAN
1x Realtek® 8126 5Gbps LAN
Internal IO

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x Front Type-C Quick Charge Connector(PD_PWR1)
1x CPU Fan
2x Combo Fan (Pump_Sys Fan)
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
2x Thermal Sensor connectors(T_SEN)
1x Tuning Controller connector(JDASH)
1x Addressable V2 RGB LED connector (JARGB_V2)
V-check point
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
1x USB 20Gbps Type C ports
WIRELESS LAN & BLUETOOTH

Wi-Fi 7 Solution
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth® 5.4**, MLO, 4KQAM
LED FEATURE

1x Dynamic Dashboard III
1x EZ Digit Debug LED
1x EZ LED Control switch

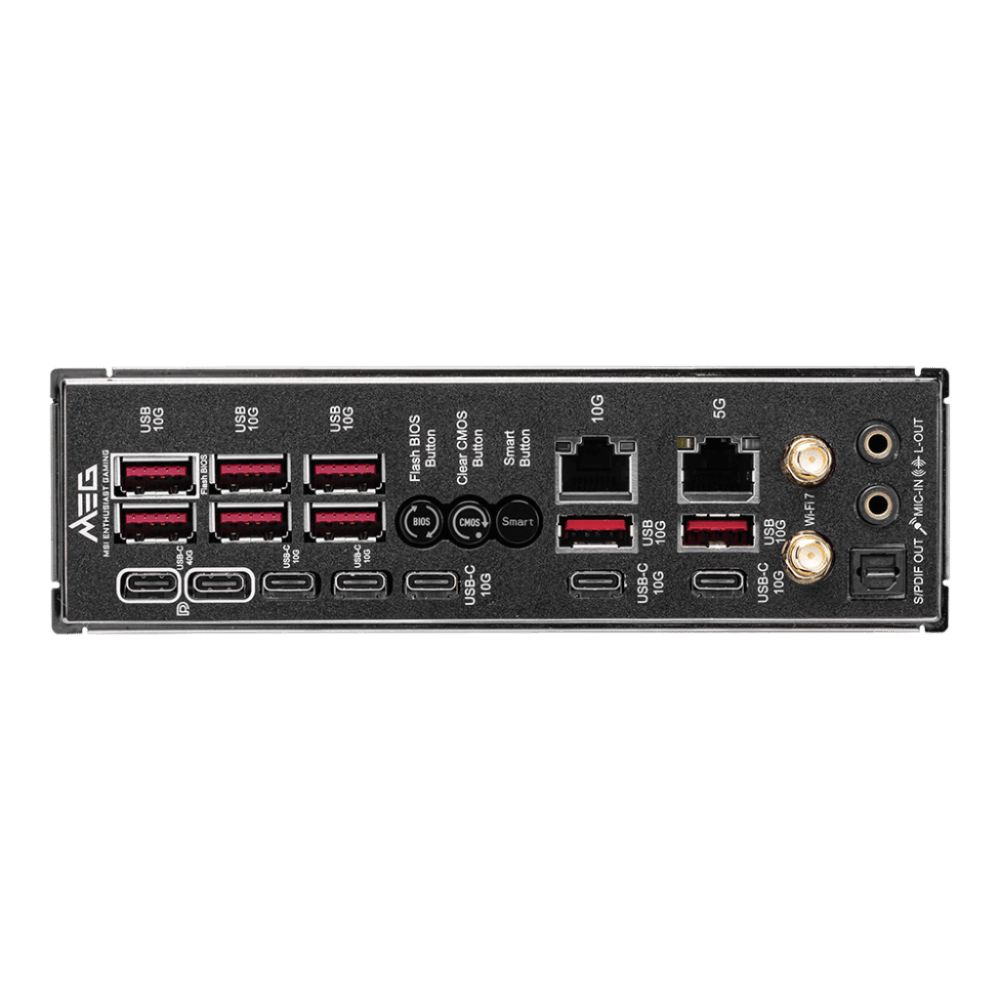

BACK PANEL PORTS

1- USB 10Gbps (Type-A)
2- Flash BIOS Button
3- Clear CMOS Button
4- Smart Button
5- 10G LAN
6- 5G LAN
7- Wi-Fi / Bluetooth
8- HD Audio Connectors
9- USB 40Gbps (Type-C)
10- USB 10Gbps (Type-C)
11- USB 10Gbps (Type-A)
12- Optical S/PDIF-Out
OPERATING SYSTEM

Support for Windows® 11 64-bit
PCB Info

E-ATX
304.8mmx277mm
