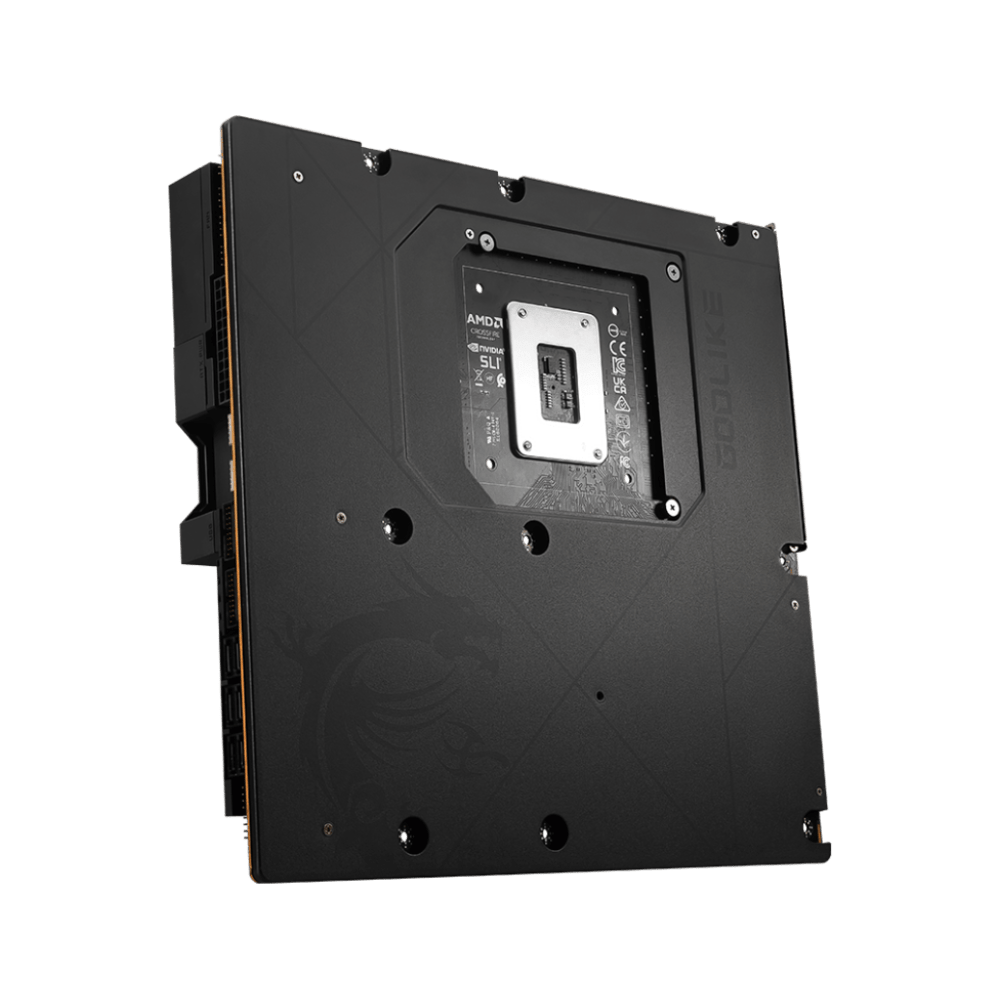

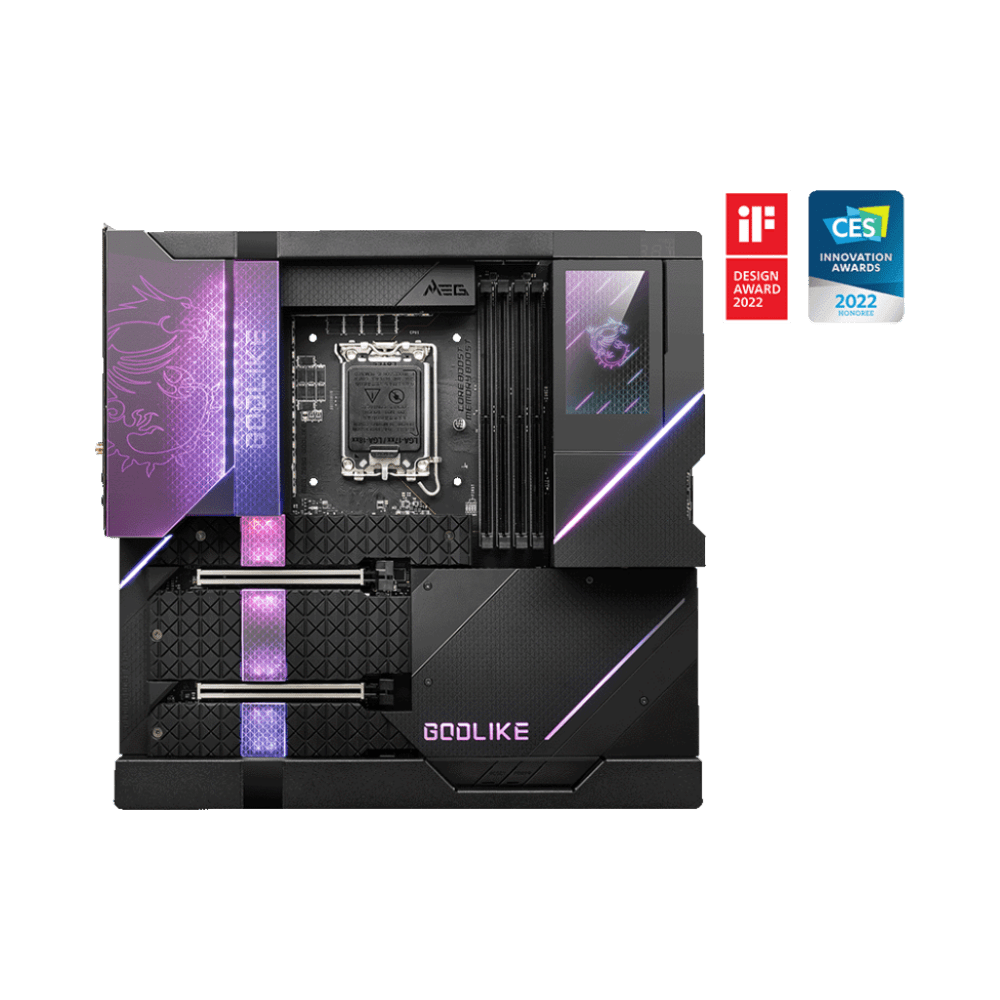

MSI MEG Z690 GODLIKE

(10 customer reviews)

The MSI MEG Z690 GODLIKE is a high-performance gaming motherboard designed for ultimate gaming and AI performance. Features Intel Core support, DDR5 memory, PCIe 5.0, Thunderbolt 4, Dynamic Dashboard III, and M.2 XPANDER-Z Slider Gen5. Get it now at Gozmax.com

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

Original price was: £1,599.00.Current price is: £1,399.00.

Compare
Add to wishlist
20 People watching this product now!

Payment Methods:

Description

The MSI MEG Z690 GODLIKE is a top-tier motherboard designed for gamers and enthusiasts who want the best performance and features. Here are some of its key specifications:

Chipset: Intel Z690, offering robust performance and compatibility.

Socket: LGA 1200, supporting 12th Gen Intel Core processors.

Memory Support: Up to 128GB of DDR5 memory across four DIMM slots, supporting speeds up to 6666+ MHz (OC).

PCIe Slots: Dual steel-reinforced PCIe 5.0 x16 slots for heavy-duty GPUs.

SATA Ports: Six SATA 6Gb/s ports for ample storage options.

M.2 Slots: Five M.2 slots, including one PCIe 5.0 x4, two PCIe 3.0 x4/SATA, and two PCIe 3.0 x4 M.2 slots.

USB Ports: Extensive connectivity with four USB 3.2 Gen 2 ports (one Type-C and three Type-A), and four USB 2.0 ports.

Networking: Features dual Intel I225-V 2.5GbE for fast and stable wired connections, and Intel AX210 Wi-Fi 6E for high-speed wireless connectivity.

Power Design: Equipped with a 20+2 phase digital power design with 105A power stage, ensuring stable power delivery for optimal performance.

Cooling: Advanced cooling solutions including double-sided FROZR metal heat sink, extended heatsink design, and an aluminum IO cover to keep the system running cool under heavy loads.

Form Factor: E-ATX, suitable for larger gaming cases.

Audio: High-quality audio with the Realtek ALC4082 codec, featuring optical S/PDIF output for an immersive sound experience.

Other Features: Enhanced features like PCIe Steel Armor, DDR5 Boost, and Direct 20+2 Power for superior performance and stability.

The MSI MEG Z690 GODLIKE is designed to deliver excellent performance, stability, and connectivity, making it an ideal choice for building a high-end gaming or productivity PC.

Specification

Processor

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors 1
Processor socket LGA1700
Chipset

Intel® Z690 Chipset
Memory

4x DDR5 memory slots, supporting up to 192GB 1
Supports 1R 5600 MHz (by JEDEC & POR)
Max. overclocking frequency:
1DPC 1R Max speed up to 6666+ MHz
1DPC 2R Max speed up to 6000+ MHz
2DPC 1R Max speed up to 6000+ MHz
2DPC 2R Max speed up to 5600+ MHz
Supports Intel® XMP 3.0 OC
Supports Dual Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Expansion Slots

3x PCIe x16 slots
– Supports x16/x0/x4, x8/x8/x4
– PCI_E1 supports PCIe 5.0 x16 (From CPU) (1)
– PCI_E2 supports PCIe 5.0 x8 (From CPU)(2)
– PCI_E3 supports PCIe 4.0 x4 (From Z690 chipset)(2)
Multi-GPU

Supports AMD® CrossFire™ Technology
Supports NVIDIA® SLI™ Technology
Thunderbolt 4

Intel®JHL8540 Thunderbolt™ 4 Controller

2x Thunderbolt™ 4 (USB-C) ports on the back panel
Supports up to 40Gbps transfer rate with Thunderbolt devices
Supports up to 20Gbps transfer rate with USB4 devices
Supports up to 10Gbps transfer rate with USB 3.2 devices
Supports up to 5V/3A ,15W power charging
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
Supports up to 8K display (need to connect the DisplayPort of the discrete graphics card to the Mini DisplayPort Input port on the back panel)
Storage

– 6x SATA 6Gb/s ports (From Z690 chipset)
SATA5~8 (From Z690 chipset)
SATAA~B (From ASM1061)
– 6x M.2 slots (Key M)
M2_1 slot (From CPU)
Supports up to PCIe 4.0 x4
Supports 2260/ 2280/ 22110 storage devices
M2_2 slot (From Z690 chipset)
Supports up to PCIe 4.0 x4
Supports 2260/ 2280 storage devices
M2_3 slot (From CPU)
Supports up to PCIe 5.0 x4
Supports 2260/ 2280/ 22110 storage devices
M2_4 slot (From Z690 chipset)
Supports up to PCIe 4.0 x4
Supports SATA 6Gb/s
Supports 2260/ 2280 storage devices
M2_5 slot (From Z690 chipset)
Supports up to PCIe 4.0 x4
Supports SATA 6Gb/s
Supports 2260/ 2280 storage devices
M2_6 slot (From Z690 chipset)
Supports up to PCIe 3.0 x4
Supports 2260/ 2280/ 22110 storage devices
M2_2, M2_4, M2_5 and M2_6 slots support Intel® Optane™ Memory
Supports Intel® Smart Response Technology for Intel Core™ processors
RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 , RAID 5 and RAID 10 for M.2 NVMe storage devices
USB

Intel® Z690 Chipset
2x USB 3.2 Gen 2×2 20Gbps Type-C internal connectors
4x USB 3.2 Gen 2 10Gbps ports on the back panel
Hub-GL3590
4x USB 3.2 Gen 2 10Gbps ports on the back panel
ASM1074
4x USB 3.2 Gen 1 5Gbps ports through internal USB connectors
Hub-GL850G
4x USB 2.0 ports through internal USB connectors
Audio

Realtek® ALC4082 Codec + ES9218PQ Combo DAC/HPA
7.1-Channel High Definition Audio
Supports S/PDIF output
LAN

1x Aquantia® AQC113CS 10Gbps LAN controller
1x Intel® I225-V 2.5Gbps LAN controller
Wireless LAN & Bluetooth

Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz 1 (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3 2, FIPS, FISMA
Internal connectors

1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors
6x SATA 6Gb/s connectors
6x M.2 slots (M-Key)
2x USB 3.2 Gen 2×2 20Gbps Type-C ports
2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
8x 4-pin system fan connectors
1x Water Flow meter connector
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
2x 2-pin Thermal Sensors connectors
1xTPM module connector
1x Tuning Controller connector
LED Feature

1x 2-Digit Debug Code LED
4x EZ Debug LED
1x 4-pin RGB LED connector
2x 3-pin RAINBOW LED connectors
1x 3-pin CORSAIR LED connector
Back panel ports

Clear CMOS Button
2.5G LAN
10G Super LAN
Thunderbolt 4 40Gbps (Type-C)
Wi-Fi / Bluetooth
HD Audio Connectors
Flash BIOS Button
USB 3.2 Gen2 10Gbps (Type-A)
M-VISION Dashboard Port
Mini DisplayPort Input (for Thunderbolt passthrough)
Optical S/PDIF-Out
Dimensions

12 in. x 12 in. (30.5 cm x 31.0 cm)
E-ATX Form Factor
Mounting

9 mounting holes
