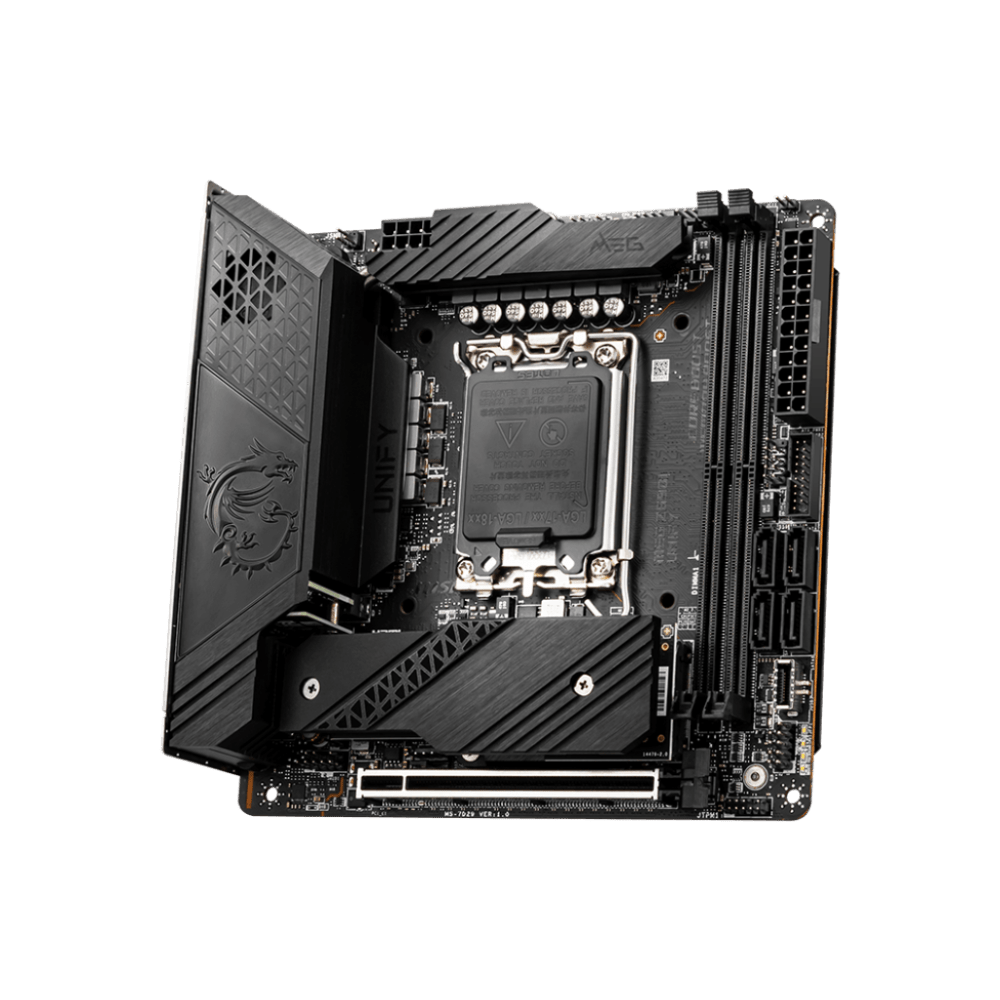

MSI MEG Z690I UNIFY

(9 customer reviews)

The MSI MEG Z690I UNIFY is a high-performance gaming motherboard designed for ultimate gaming and AI performance. Features Intel Core support, DDR5 memory, PCIe 5.0, Thunderbolt 4, Dynamic Dashboard III, and M.2 XPANDER-Z Slider Gen5. Get it now at Gozmax.com .

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

Original price was: £799.00.Current price is: £649.00.

Compare
Add to wishlist
12 People watching this product now!

Payment Methods:

Description

The MSI MEG Z690I UNIFY is a high-performance Mini-ITX motherboard designed for gamers and enthusiasts who demand top-tier performance in a compact form factor. Here are some of its key features:

Chipset: Intel Z690, offering robust performance and compatibility.

Socket: LGA 1200, supporting 12th Gen Intel Core processors.

Memory Support: Up to 128GB of DDR5 memory across two DIMM slots, supporting speeds up to 6666+ MHz (OC).

PCIe Slots: One PCIe 5.0 x16 slot for top-of-the-line graphics cards.

SATA Ports: Four SATA 6Gb/s ports for ample storage options.

M.2 Slots: Two M.2 slots (one PCIe 5.0 x4 and one PCIe 3.0 x4/SATA) for high-speed storage solutions.

USB Ports: Extensive connectivity with four USB 3.2 Gen 2 ports (one Type-C and three Type-A), and four USB 2.0 ports.

Networking: Features Intel I225-V 2.5GbE for fast and stable wired connections, and Intel AX210 Wi-Fi 6E for high-speed wireless connectivity.

Power Design: Equipped with a 10+1+1 phase digital power design with 105A power stage, ensuring stable power delivery for optimal performance.

Cooling: Advanced cooling solutions including double-sided FROZR metal heat sink, extended heatsink design, and an aluminum IO cover to keep the system running cool under heavy loads.

Form Factor: Mini-ITX, suitable for compact builds.

Audio: High-quality audio with the Realtek ALC4080 codec, featuring optical S/PDIF output for an immersive sound experience.

Other Features: Enhanced features like PCIe Steel Armor, DDR5 Boost, and Direct 10+1+1 Power for superior performance and stability.

The MSI MEG Z690I UNIFY is designed to deliver excellent performance, stability, and connectivity, making it an ideal choice for building a high-end gaming or productivity PC in a compact form factor.

Specification

Processor

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors 1
Processor socket LGA1
Chipset

Intel® Z690 Chipset
Memory

2x DDR5 memory slots, supporting up to 96GB 1
Supports 1R 5600 MHz (by JEDEC & POR)
Max. overclocking frequency:
1DPC 1R Max speed up to 6800+ MHz
1DPC 2R Max speed up to 6400+ MHz
Supports Intel® XMP 3.0 OC
Supports Dual Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Expansion Slots

1x PCIe 5.0 x16 slot (From CPU)
Onboard Graphics

1x DisplayPort 1.4 port, supporting a maximum resolution of 4K 60Hz 1/2
1x HDMI™ 2.1 with HDR port, supporting a maximum resolution of 4K 60Hz
Thunderbolt™ 4

Intel® JHL8540 Thunderbolt™ 4 Controller
2x Thunderbolt™ 4 (USB-C) ports on the back panel
Supports up to 40Gbps transfer rate with Thunderbolt devices
Supports up to 20Gbps transfer rate with USB4 devices
Supports up to 10Gbps transfer rate with USB 3.2 devices
Supports up to 5V/3A ,15W power charging
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
Supports up to 8K display (need to connect the DisplayPort of the motherboard or discrete graphics card to the Mini DisplayPort Input port on the back panel)
Storage

4x SATA 6Gb/s ports (From Z690 chipset)
3x M.2 slots (Key M)
M2_1 slot (From CPU)
Supports up to PCIe 4.0 x4
Supports 2280 storage devices
M2_2 slot (From Z690 chipset)
M2_2 supports up to PCIe 3.0 x4
Supports up to SATA 6Gb/s
Supports 2280 storage devices
M2_3 slot (From Z690 chipset)
M2_3 supports up to PCIe 4.0 x4
Supports 2280 storage devices
M2_2~3 slots support Intel® Optane™ Memory
Supports Intel® Smart Response Technology for Intel Core™ processors
RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
USB

Intel® Z690 Chipset
1x USB3.2 Gen2x2 20Gbps port (1 Type-C internal connector)
2x USB 3.2 Gen 2 10Gbps ports on the back panel
6x USB 3.2 Gen 1 5Gbps ports( (4 Type-A ports on the back panel and 2 ports available through internal USB connectors)
2x USB 2.0 ports available through the internal USB connector
Audio

Realtek® ALC4080 Codec
7.1-Channel High Definition Audio
LAN

1x Inte® I225V 2.5Gbps LAN controller
Wireless LAN & Bluetooth

Intel®Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz 1(160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.32, FIPS, FISMA
Internal connectors

1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
3x M.2 slots (M-Key)
1x USB 3.2 Gen 2×2 20Gbps Type-C connector
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
1x 4-pin system fan connector
1x Front panel audio connector
1x System panel connector
1x Chassis Intrusion connector
1x TPM module connector
LED Feature

4x EZ Debug LED
1x 3-pin RAINBOW LED connectors
Back Panel Connectors

1- DisplayPort
2- USB 3.2 Gen1 5Gbps (Type-A)
3- 2.5G LAN
4- Wi-Fi / Bluetooth
5- Thunderbolt 4 40Gbps (Type-C)
6- HD Audio Connectors
7- Clear CMOS Button
8- HDMI™
9- USB 3.2 Gen2 10Gbps (Type-A)
10- Mini DisplayPort Input (for Thunderbolt passthrough)
Dimensions

6.7 in. x 6.7 in. [17.0 cm x 17.0 cm]
Mini-ITX Form Factor
