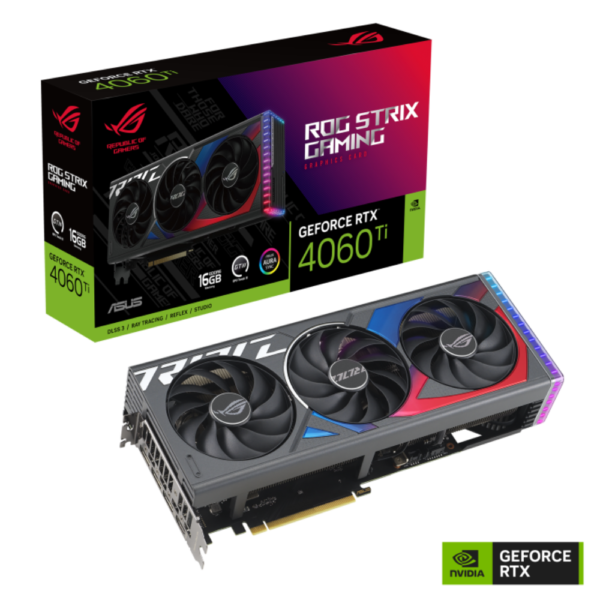

ROG Strix GeForce RTX™ 4060 Ti 16GB GDDR6
ROG Strix GeForce RTX™ 4060 Ti 16GB GDDR6 £499.00
Back to products
ROG Matrix Platinum GeForce RTX™ 4090 24GB GDDR6X
ROG Matrix Platinum GeForce RTX™ 4090 24GB GDDR6X £2,499.00
Click to enlarge

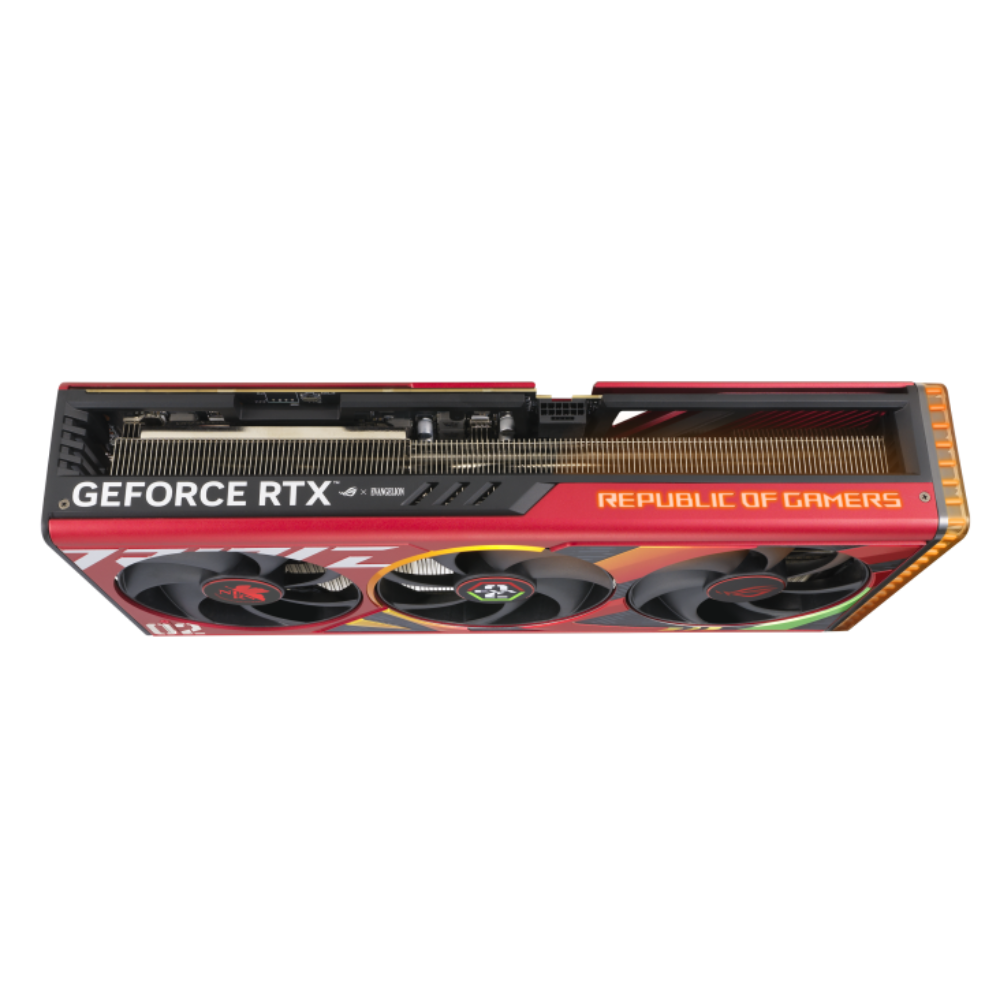

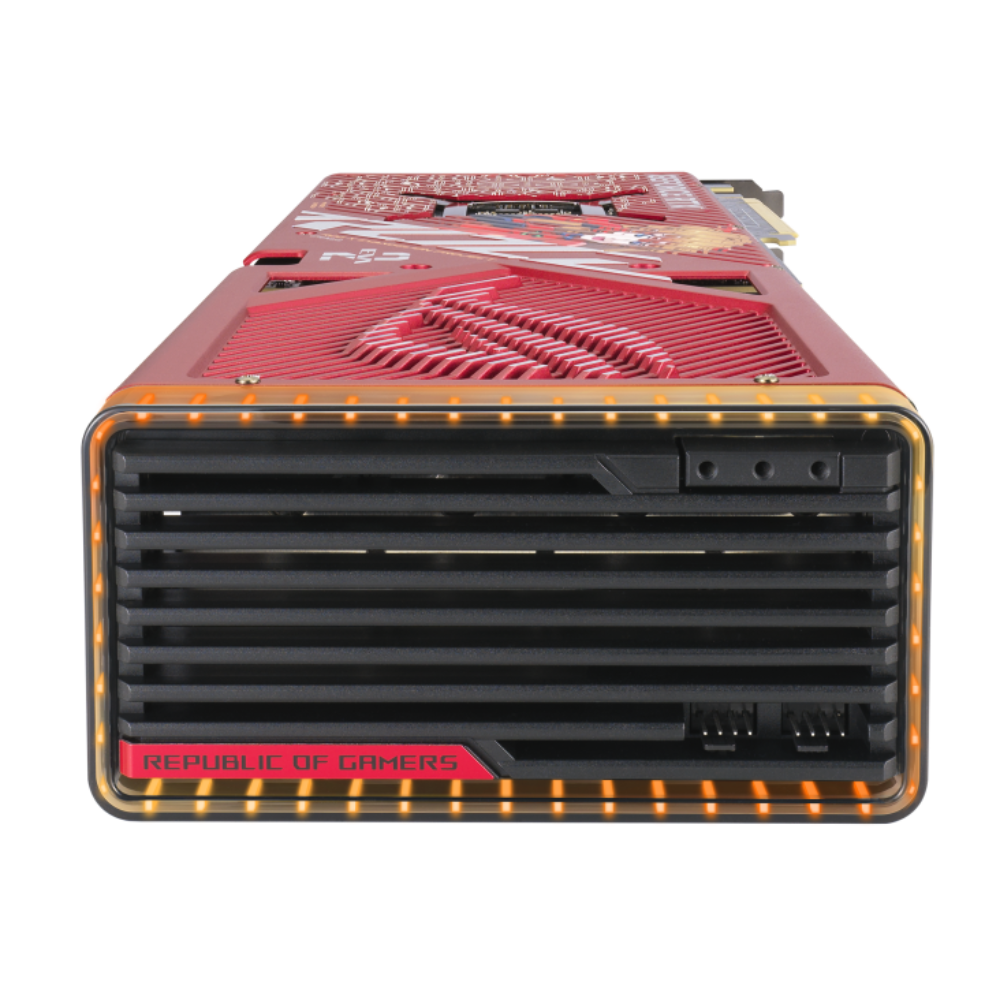

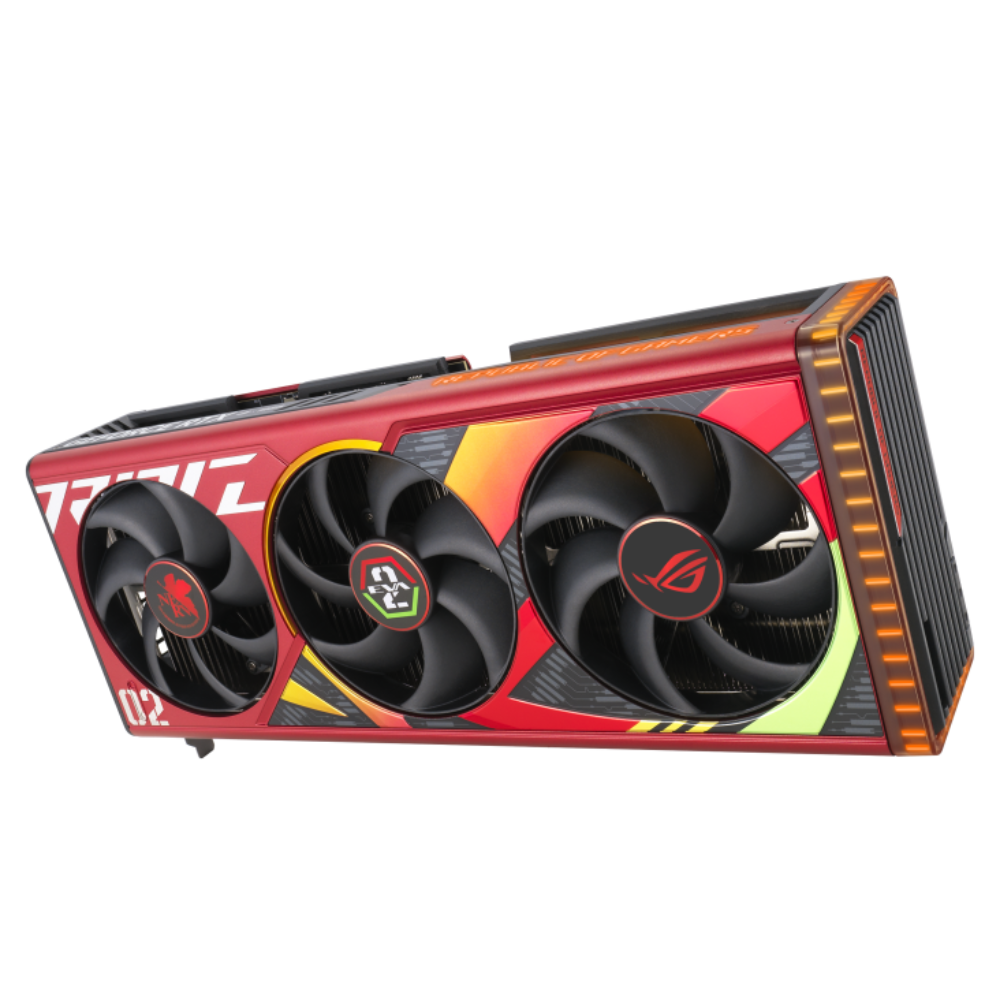

ROG Strix GeForce RTX™ 4090 24GB GDDR6X OC EVA-02 Edition

Unleash the power of the ROG Strix RTX™ 4090 OC EVA-02 Edition. With 24GB GDDR6X, DLSS 3, and a bold EVA-02 design, this GPU sets new standards for 4K gaming.

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

£1,999.00

Compare
Add to wishlist
10 People watching this product now!

Payment Methods:

Description

The ROG Strix GeForce RTX™ 4090 24GB GDDR6X OC EVA-02 Edition is the pinnacle of gaming performance, combining NVIDIA’s most advanced GPU technology with an exclusive Evangelion-inspired EVA-02 design. This special edition card is perfect for enthusiasts and fans alike, offering unmatched performance and a stunning visual aesthetic.

Powered by NVIDIA’s Ada Lovelace architecture, the RTX™ 4090 delivers groundbreaking performance for 4K gaming, ray tracing, and AI-enhanced workflows. With 24GB of GDDR6X memory, this card handles the most demanding tasks effortlessly, from ultra-high-resolution gaming to complex content creation.

The OC Edition comes factory overclocked, ensuring top-tier speeds and smooth performance out of the box. The advanced Axial-tech cooling system, coupled with a vapor chamber, ensures quiet operation and optimal temperatures, even under heavy workloads.

Key Features:

GPU Architecture: NVIDIA Ada Lovelace
CUDA Cores: 16,384
Memory: 24GB GDDR6X
Memory Interface: 384-bit
Boost Clock: Up to 2.6 GHz (OC Mode)
Ray Tracing Cores: 3rd Generation
DLSS Technology: NVIDIA DLSS 3 for AI-accelerated performance
Design: Exclusive EVA-02 color scheme and graphics
Cooling: Advanced Axial-tech fans, vapor chamber, and improved heatsink
Lighting: Aura Sync RGB with customizable effects
Ports: HDMI 2.1a, DisplayPort 1.4a
Power Consumption: ~450W (recommended PSU: 850W or higher)
Unique EVA-02 Design:
The EVA-02 Edition features bold colors and artwork inspired by the iconic Evangelion franchise, making it a must-have for fans and collectors. With Aura Sync RGB, you can further customize the look to match your build.

Perfect for Gamers and Creators:
Whether you’re gaming at 4K resolution, diving into ray-traced environments, or tackling intensive 3D rendering tasks, the ROG Strix RTX™ 4090 EVA-02 Edition delivers unparalleled performance and aesthetics.

Specification

Graphic Engine

NVIDIA® GeForce RTX™ 4090
AI Performance

1368
Bus Standard

PCI Express 4.0
OpenGL

OpenGL®4.6
Video Memory

24GB GDDR6X
Engine Clock

OC mode: 2640 MHz
Default mode: 2610 MHz (Boost Clock)
CUDA Core

16384
Memory Speed

21 Gbps
Memory Interface

384-bit
Resolution

Digital Max Resolution 7680 x 4320
Interface

Yes x 2 (Native HDMI 2.1a)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)
Maximum Display Support

4
NVlink/ Crossfire Support

No
Accessories

1 x Collection Card​
1 x Speedsetup Manual​
1 x Adapter Cable​
1 x ROG EVA Graphics Card Holder
1 x ROG EVA Velcro Hook & Loop
1 x Thank you Card
Software

ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
Dimensions

357.6 x 149.3 x 70.1mm
Recommended PSU

1000W
Power Connectors

1 x 16-pin
Slot

3.5 Slot
AURA SYNC

ARGB
