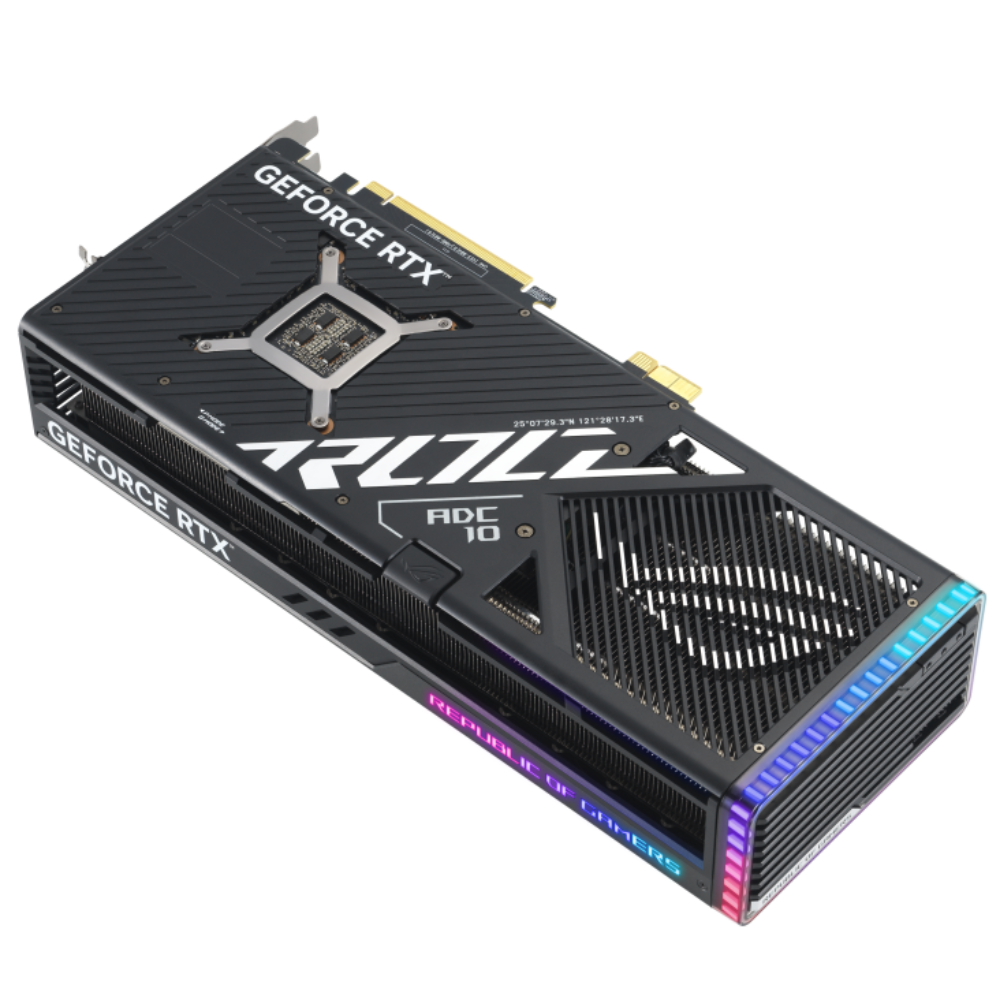

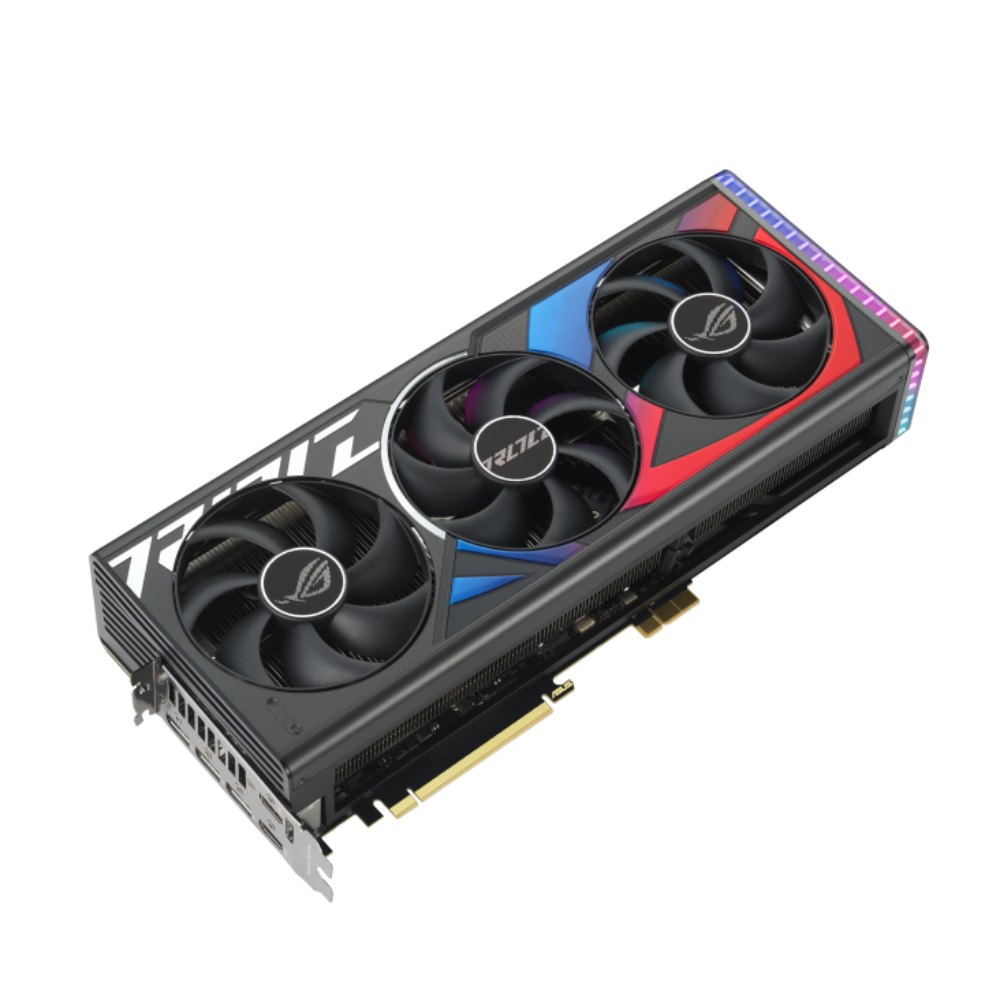

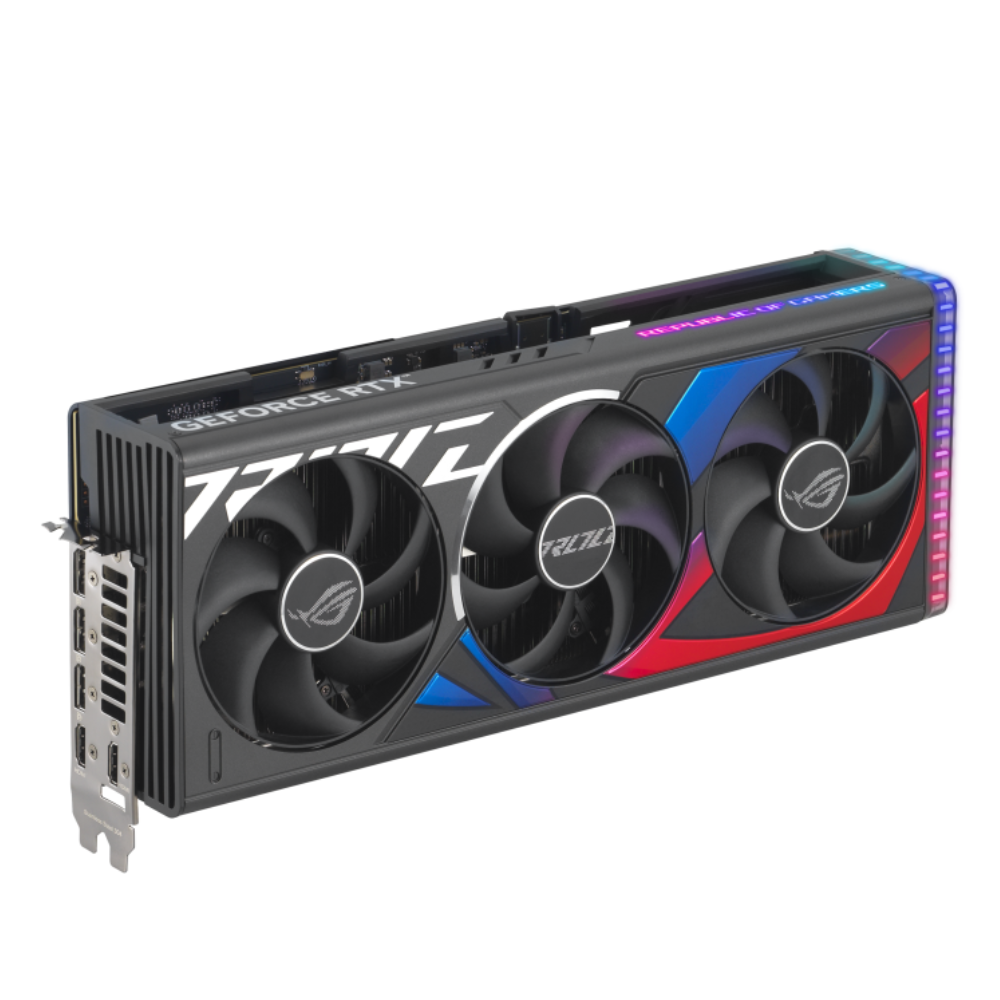

ROG Strix GeForce RTX™ 4090 BTF OC Edition 24GB GDDR6X

Unleash unmatched power with the ROG Strix RTX™ 4090 BTF OC Edition. Equipped with 24GB GDDR6X, NVIDIA DLSS 3, and revolutionary cooling for 8K gaming performance.

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

£1,799.00

Compare
Add to wishlist
55 People watching this product now!

Payment Methods:

Description

Push the boundaries of gaming and content creation with the ROG Strix GeForce RTX™ 4090 BTF OC Edition 24GB GDDR6X. Powered by NVIDIA’s most advanced Ada Lovelace architecture, this graphics card delivers extraordinary performance, efficiency, and AI-enhanced features for the ultimate gaming and creative experience.

With 24GB of GDDR6X memory and 3rd Gen Ray Tracing Cores, the RTX™ 4090 ensures exceptional visuals, seamless 4K and 8K gaming, and professional-grade performance for video editing, 3D rendering, and AI workflows. The BTF (Back To Future) design features a clean, cable-free aesthetic, making it perfect for minimalistic, modern PC builds.

The OC Edition comes factory overclocked to deliver out-of-the-box performance boosts. Paired with ASUS’s proprietary Axial-tech cooling and massive heatsink design, the card ensures silent yet powerful cooling during demanding tasks. Its Aura Sync RGB lighting allows full customization to suit your rig’s style.

Key Features:

GPU Architecture: NVIDIA Ada Lovelace
CUDA Cores: 16384
Memory: 24GB GDDR6X
Memory Interface: 384-bit
Boost Clock: Up to 2.75 GHz (OC Mode)
Ray Tracing Cores: 3rd Generation
DLSS Technology: NVIDIA DLSS 3 for AI-powered rendering and frame generation
Cooling: Axial-tech fans, vapor chamber, and optimized heat dissipation
Design: BTF (cable-free), clean and modern aesthetics
Lighting: Aura Sync RGB for a personalized look
Ports: HDMI 2.1a, DisplayPort 1.4a, up to 4 monitor support
Power Consumption: ~450W (recommended PSU: 1000W or higher)
Revolutionary Cooling System:
The ROG Strix RTX™ 4090 BTF OC Edition employs a state-of-the-art cooling system with a vapor chamber and triple Axial-tech fans to maintain peak performance even under the most demanding gaming loads.
Whether you’re chasing the highest FPS in the latest AAA games or rendering complex 3D models, the ROG Strix GeForce RTX™ 4090 BTF OC Edition is designed to deliver unparalleled performance and stunning visuals, making it the ultimate GPU for enthusiasts and professionals alike.

Specification

Graphic Engine

NVIDIA® GeForce RTX™ 4090
AI Performance

1368
Bus Standard

PCI Express 4.0
OpenGL

OpenGL®4.6
Video Memory

24GB GDDR6X
Engine Clock

OC mode: 2640 MHz
Default mode: 2610 MHz (Boost clock)
CUDA Core

16384
Memory Speed

21 Gbps
Memory Interface

384-bit
Resolution

Digital Max Resolution 7680 x 4320
Interface

Yes x 2 (Native HDMI 2.1a)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)
Maximum Display Support

4
NVlink/ Crossfire Support

No

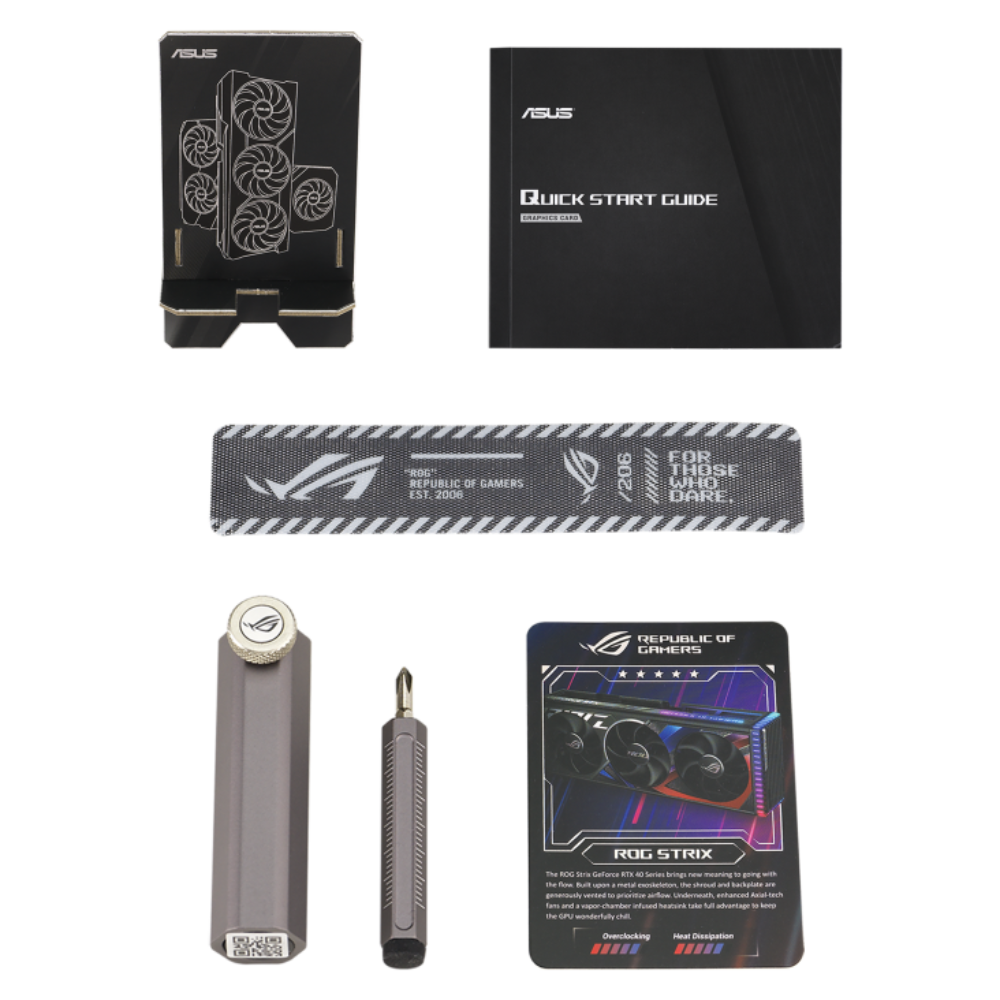

Accessories

1 x Collection Card​
1 x Speedsetup Manual​
1 x ROG Graphics Card Holder
1 x ROG Velcro Hook & Loop
1 x Thank you Card
Software

ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
Dimensions

357.6 x 149.3 x 70.1mm
Recommended PSU

1000W
Power Connectors

PCIe high-power connector
Slot

3.5 Slot

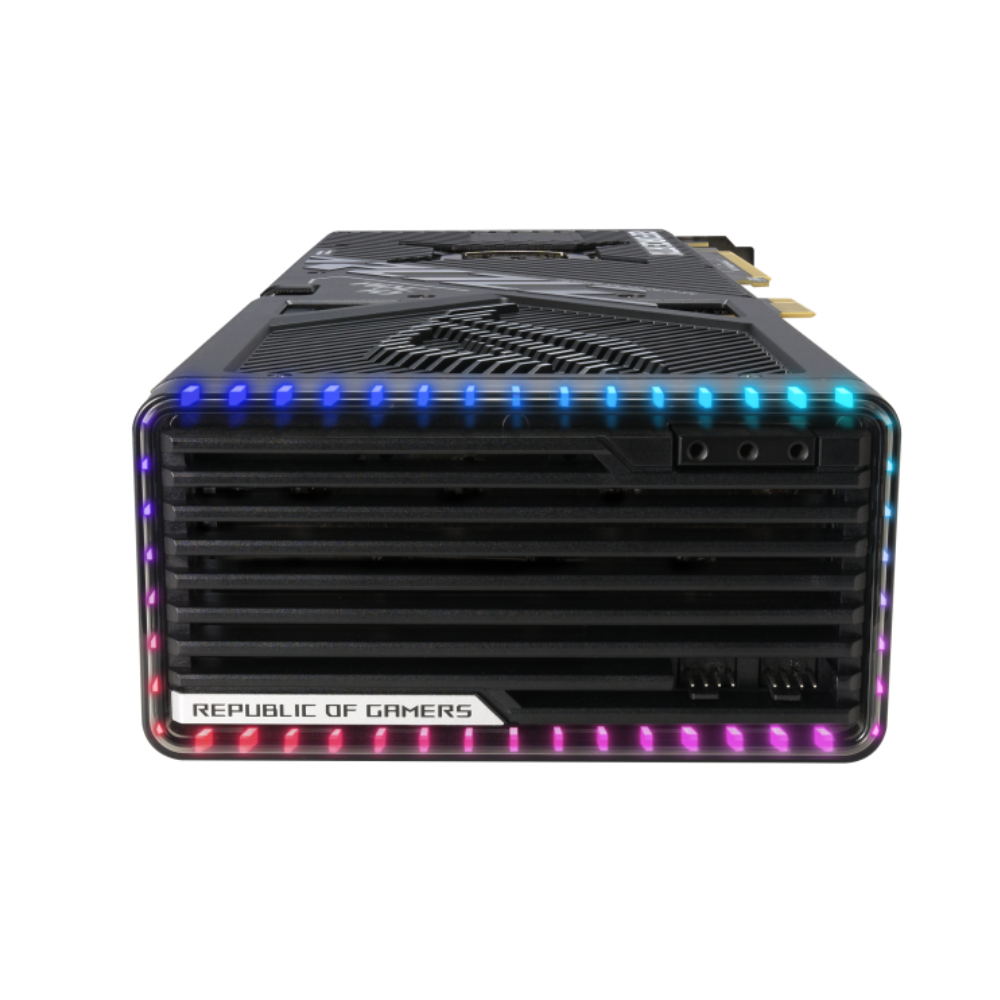

AURA SYNC

ARGB

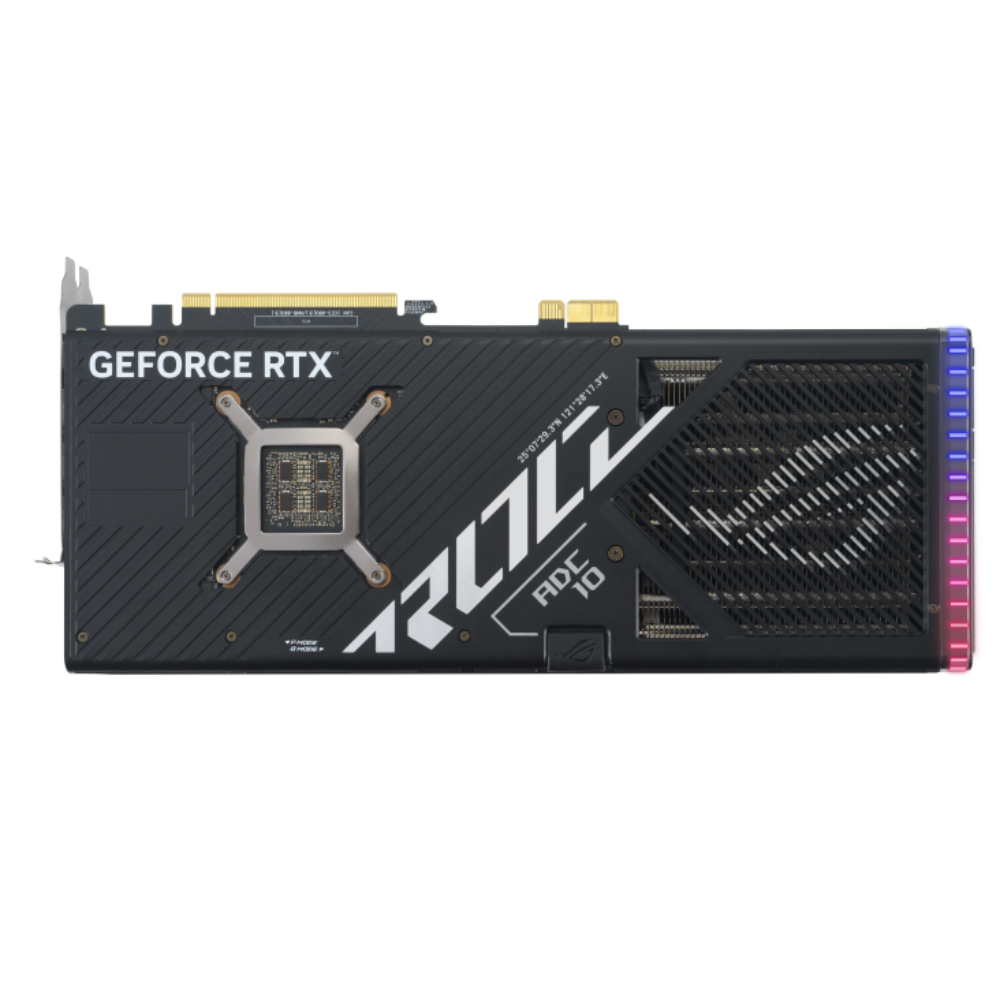

Hidden-connector (BTF)

With Graphics card high-power gold finger
