Description

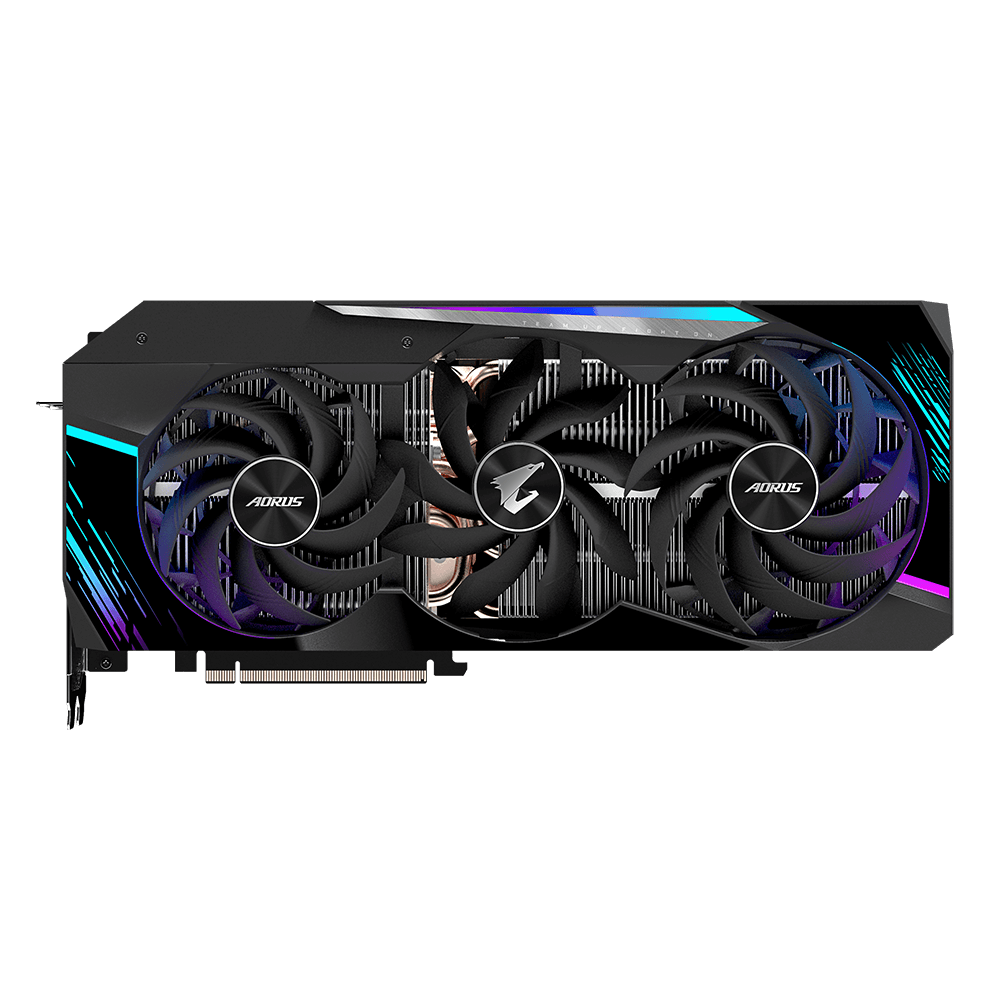

The AORUS GeForce RTX 3090 MASTER 24G Rev. 2.0 is a premium air-cooled RTX 3090 model from Gigabyte. It uses NVIDIA's Ampere architecture with 10,496 CUDA cores and 24 GB of fast GDDR6X memory, designed for top-tier gamers, content creators, and professionals. It features triple 110 mm WINDFORCE fans, a vapor chamber cooling system, an LCD Edge View display, a reinforced metal build, and a triple 8-pin power connector setup, supporting high power draw and overclocking.
Key Features
-
CUDA Cores: 10,496
-
Memory: 24 GB GDDR6X, 384-bit interface (~936 GB/s bandwidth)
-
Factory Boost Clock: 1,785 MHz (higher than reference 1,695 MHz)
-

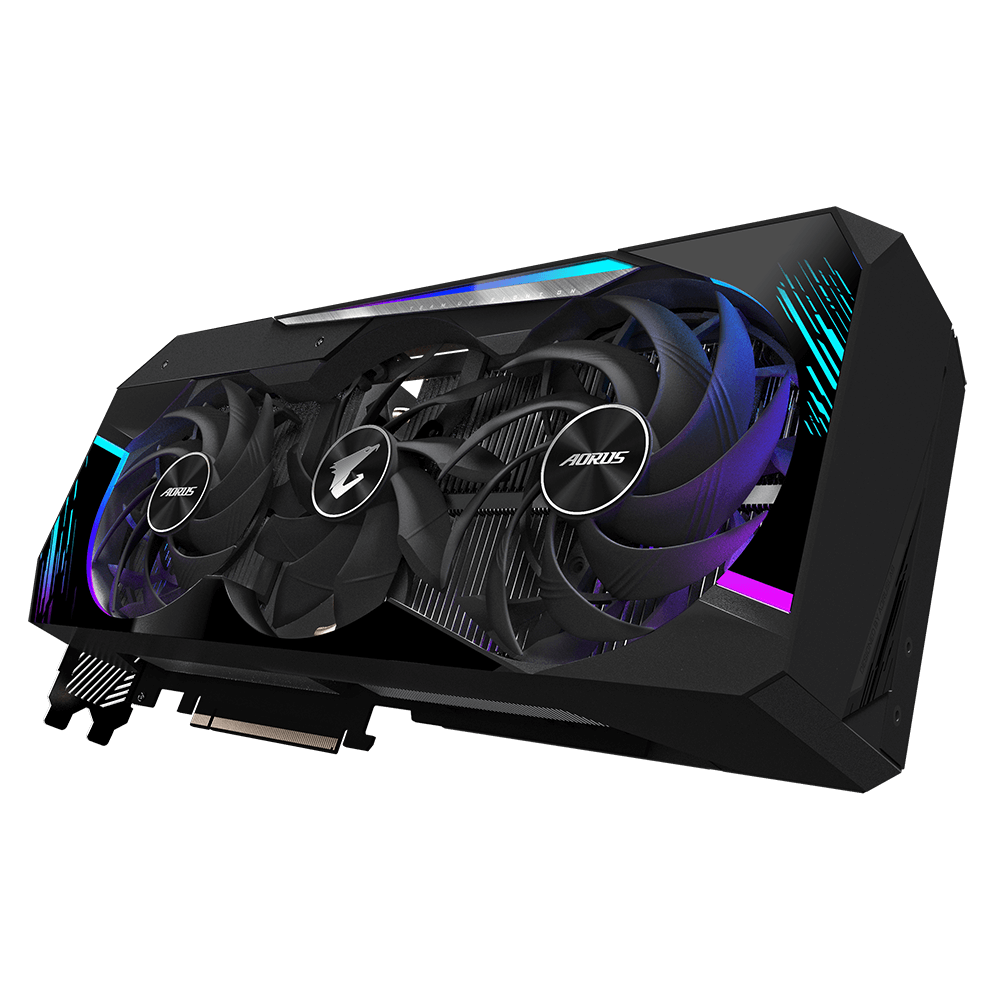

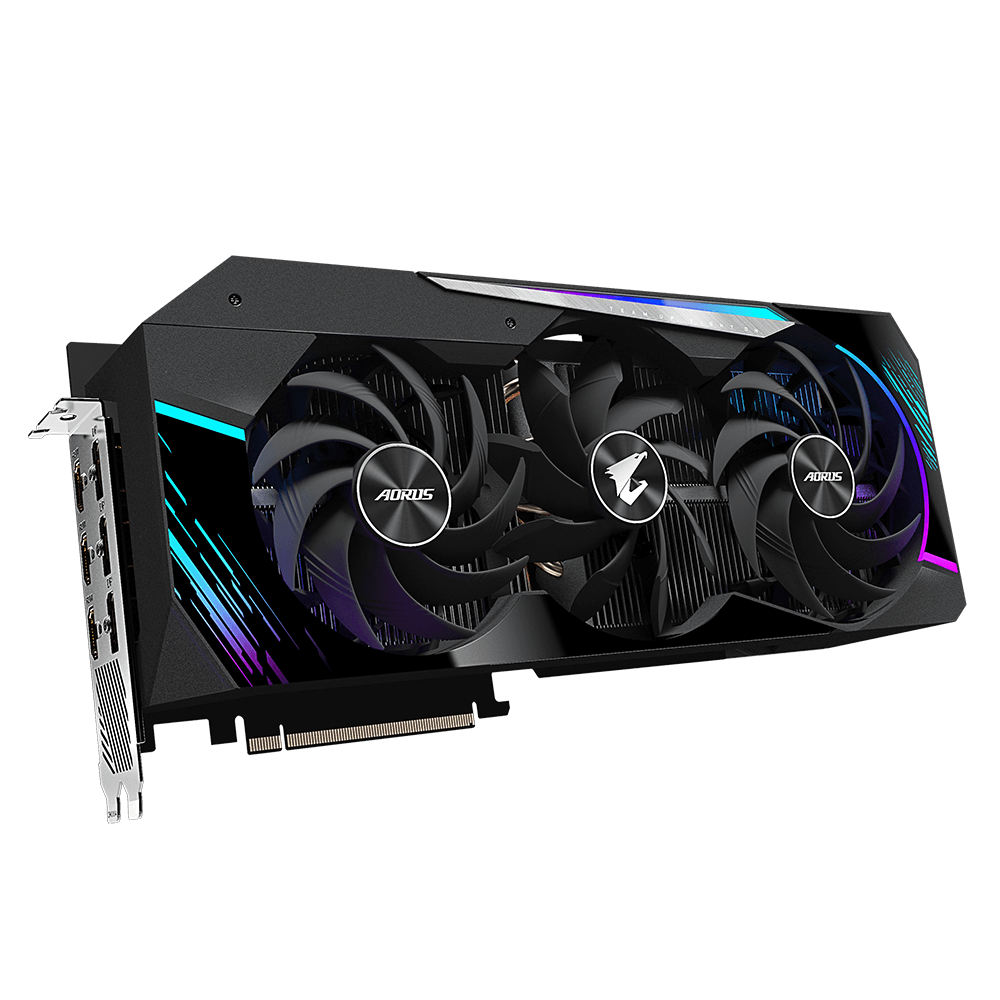

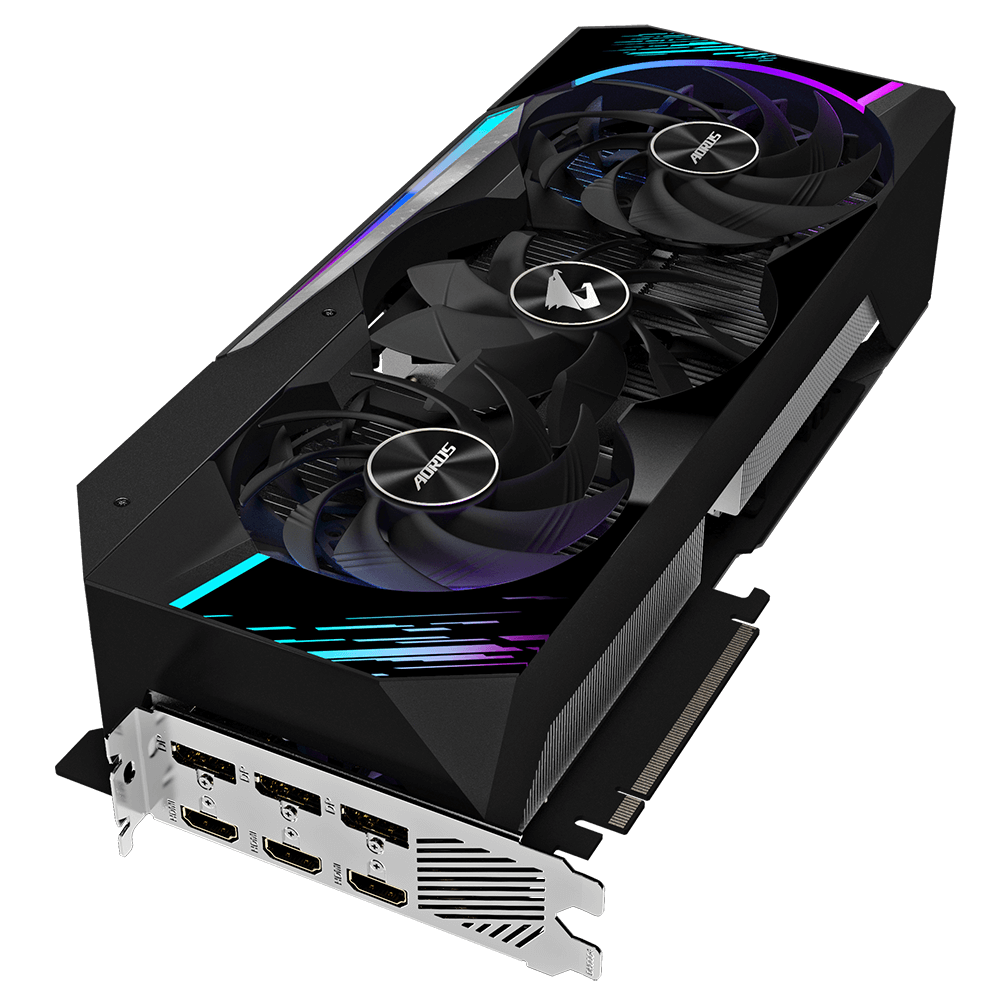

Cooling System: Triple 110 mm alternate-spinning WINDFORCE fans with vapor chamber
-
Power Design: 3 × 8-pin PCIe connectors, recommended PSU 850 W or higher
-

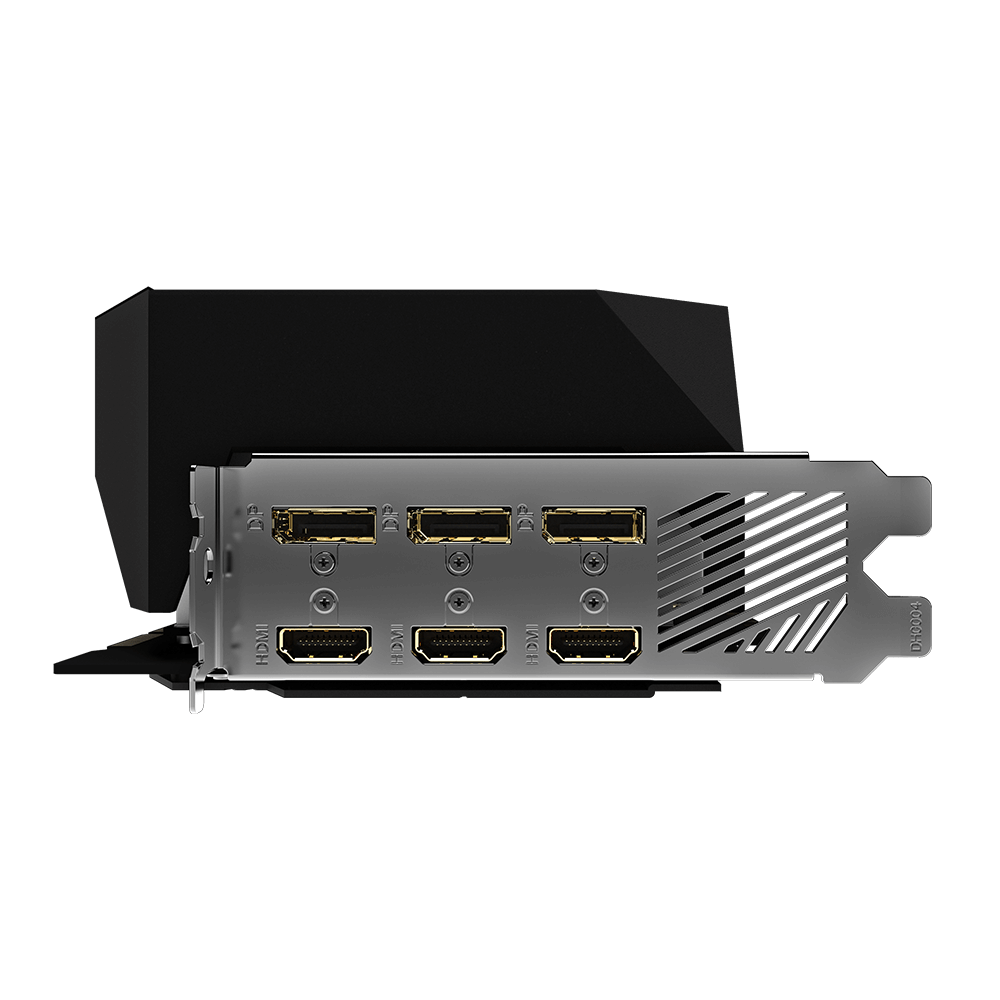

Display Outputs: 3 × DisplayPort 1.4a and 3 × HDMI 2.1 (configurable)
-

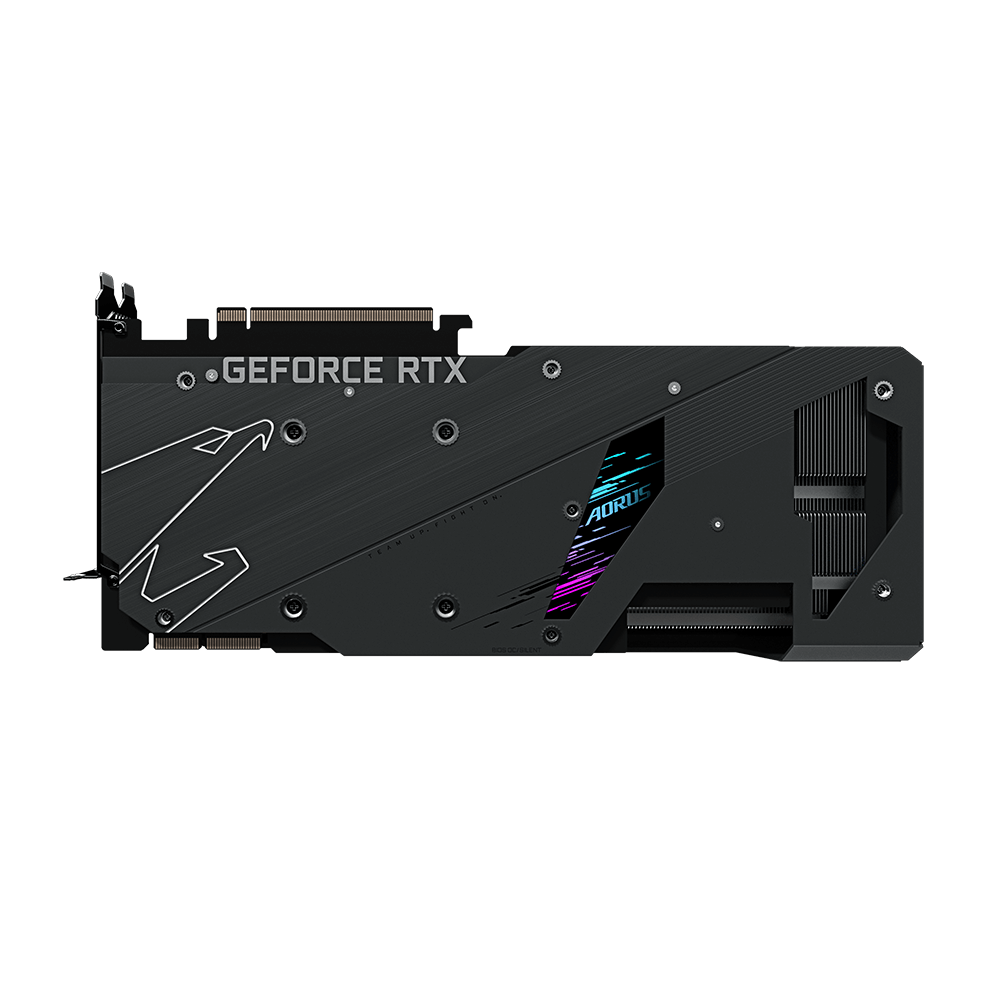

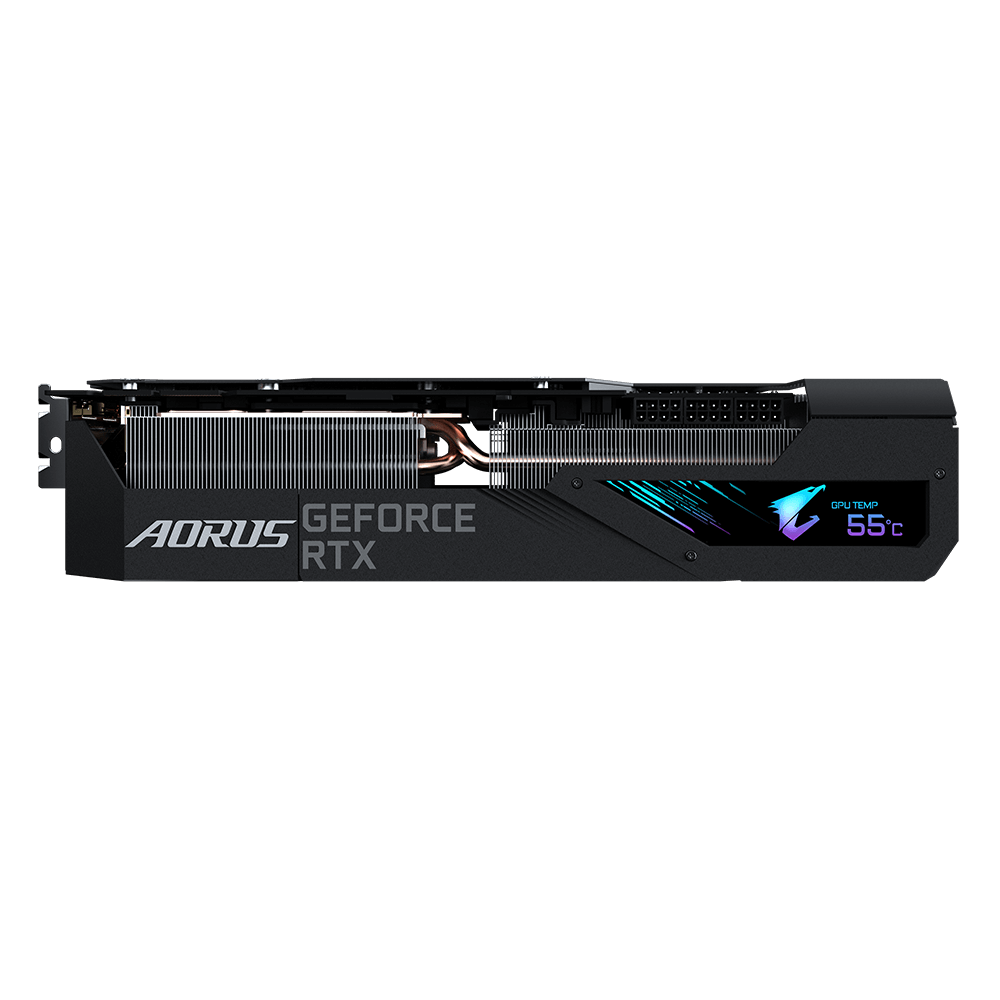

Extras: LCD Edge View display, RGB Fusion 2.0 lighting, dual BIOS, metal backplate, 4-year warranty (registration required)
Specifications Summary
| Attribute | Detail |
|---|---|
| CUDA Cores | 10,496 |
| Memory | 24 GB GDDR6X, 384-bit @ 19.5 Gbps (~936 GB/s) |
| Boost Clock | 1,785 MHz (factory overclocked) |
| Outputs | 3 × DisplayPort 1.4a, 3 × HDMI 2.1 |
| Power Connectors | 3 × 8-pin; PSU ≥ 850 W |
| Dimensions | Approximately 319 × 140 × 70 mm (4-slot) |
| Cooling | WINDFORCE Max-Covered system with vapor chamber and triple fans |
| Special Features | LCD monitor, dual BIOS, RGB lighting, metal backplate, extended warranty |
Community Notes
-
The Rev. 2.0 version adds an extra 8-pin power connector and increases the recommended PSU to 850 W, enabling higher power limits (~400 W+) and better overclocking potential.
