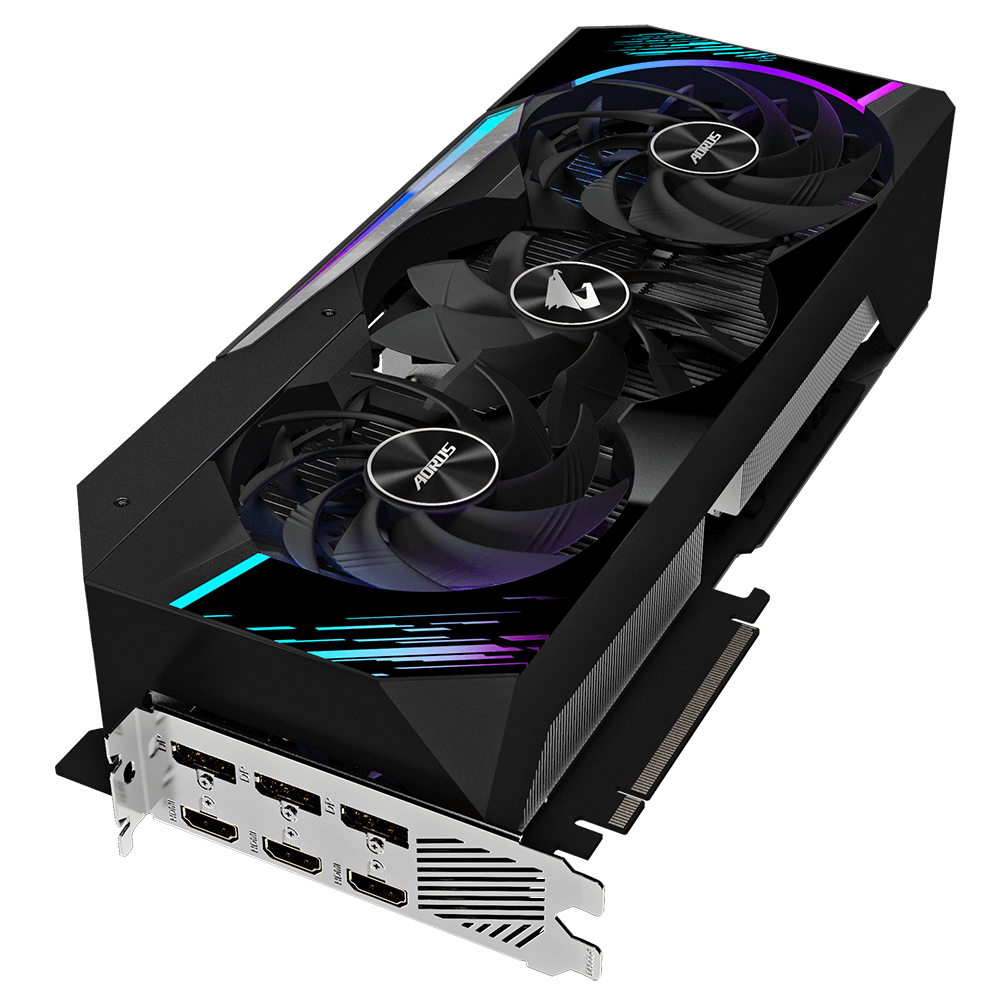

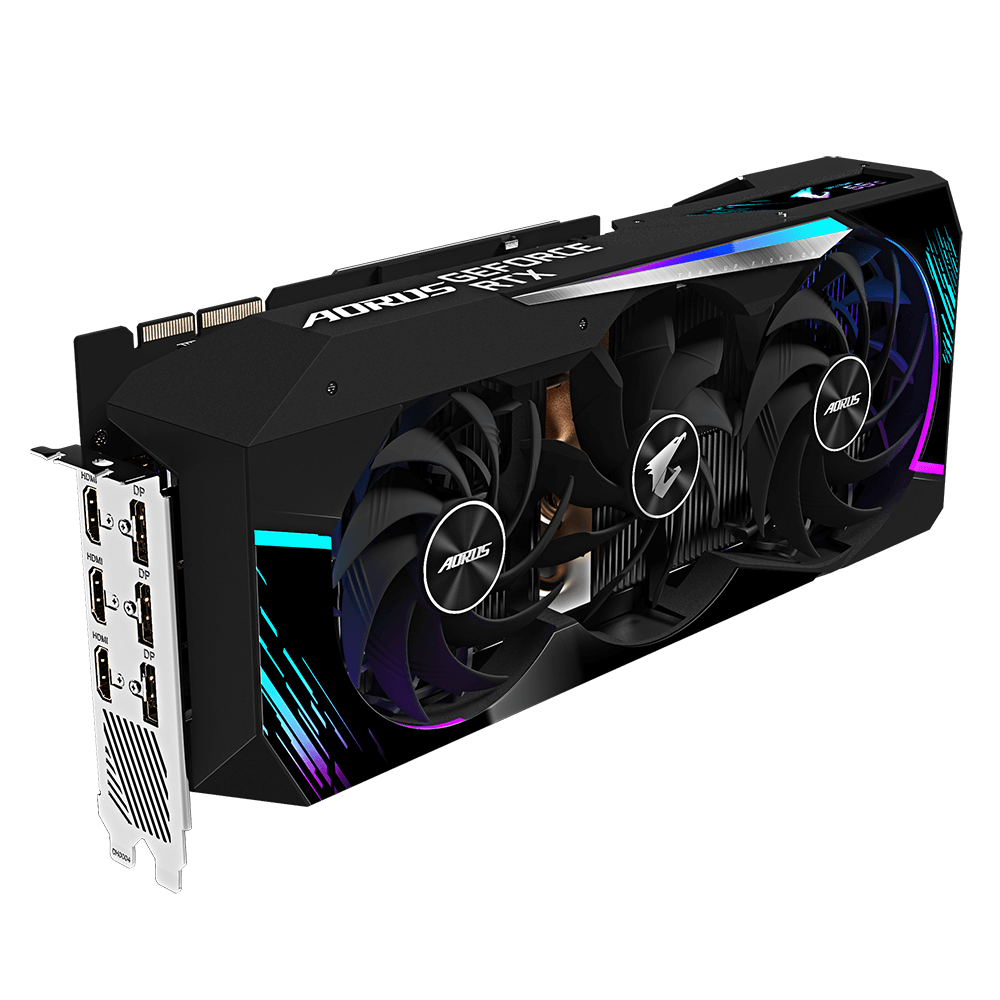

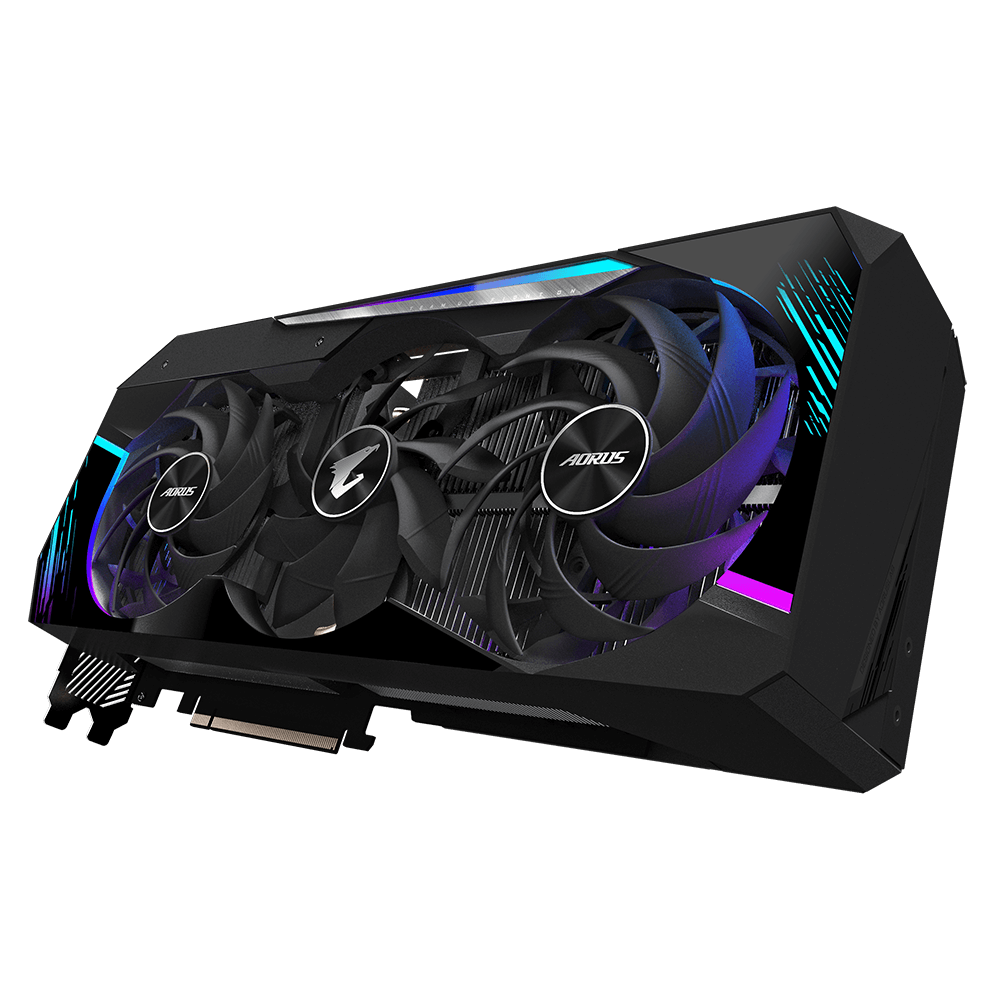

The AORUS GeForce RTX™ 3090 MASTER 24G (Rev. 1.0) is a premium air-cooled graphics card from Gigabyte's AORUS lineup. Built on NVIDIA's Ampere architecture, it features 10,496 CUDA cores and 24 GB of GDDR6X memory, delivering exceptional performance for 4K gaming, content creation, and AI workloads. The card is equipped with the WINDFORCE STACK cooling system, an LCD Edge View display, and RGB Fusion 2.0 lighting for enhanced aesthetics and functionality.
🌟 Key Features
-
CUDA Cores: 10,496
-
Memory: 24 GB GDDR6X, 384-bit interface (~936 GB/s bandwidth)
-
Boost Clock: 1,785 MHz (factory overclocked)
-

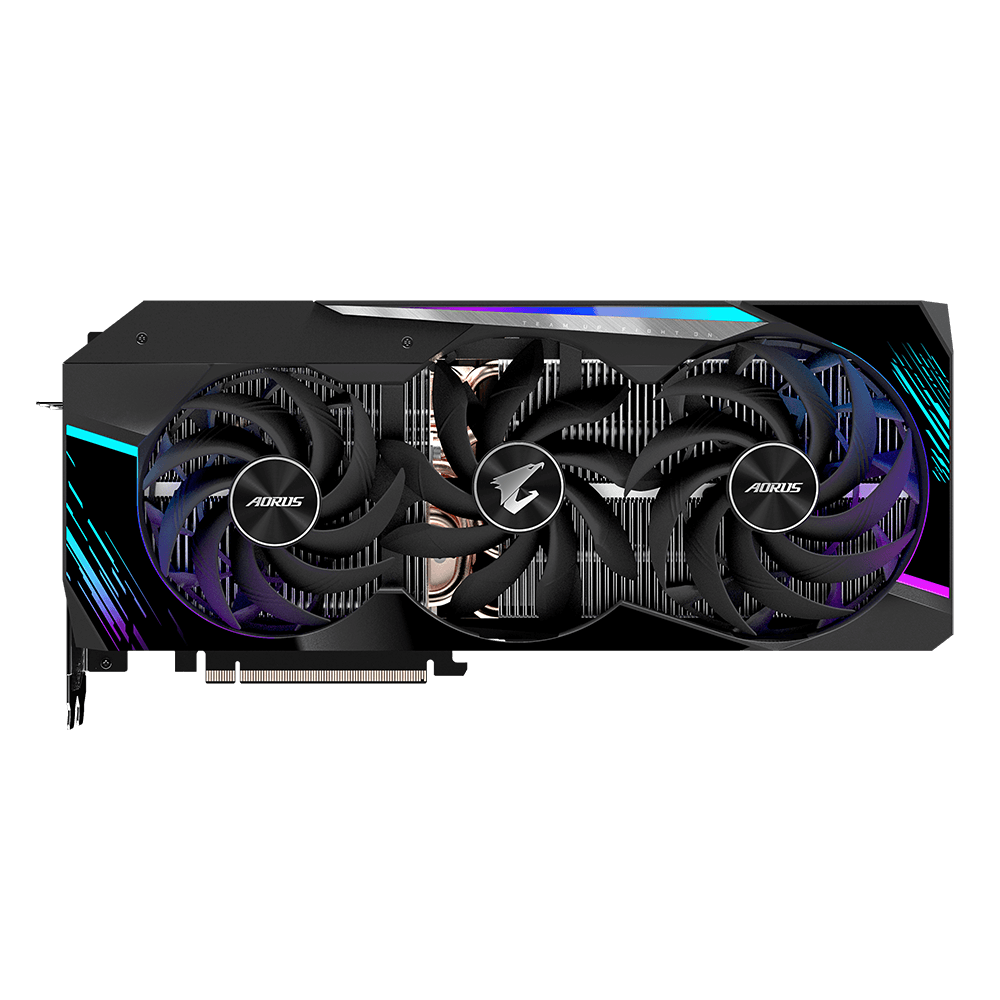

Cooling System: WINDFORCE STACK with triple 100 mm alternate-spinning fans and vapor chamber
-

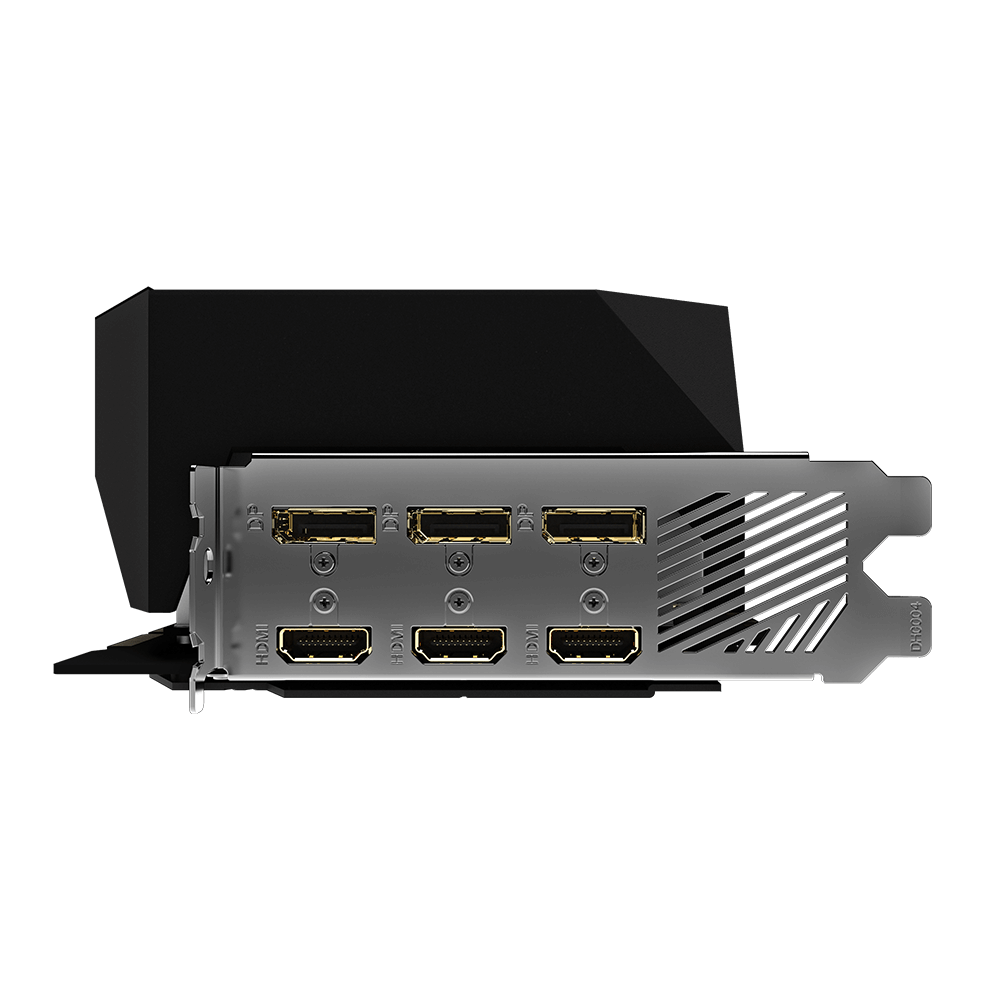

Display Outputs: 3× DisplayPort 1.4a, 2× HDMI 2.1, 1× HDMI 2.0
-
Power Connectors: 2× 8-pin PCIe
-
Recommended PSU: 750 W or higher
-
Form Factor: 3.5-slot, 319 mm length
-

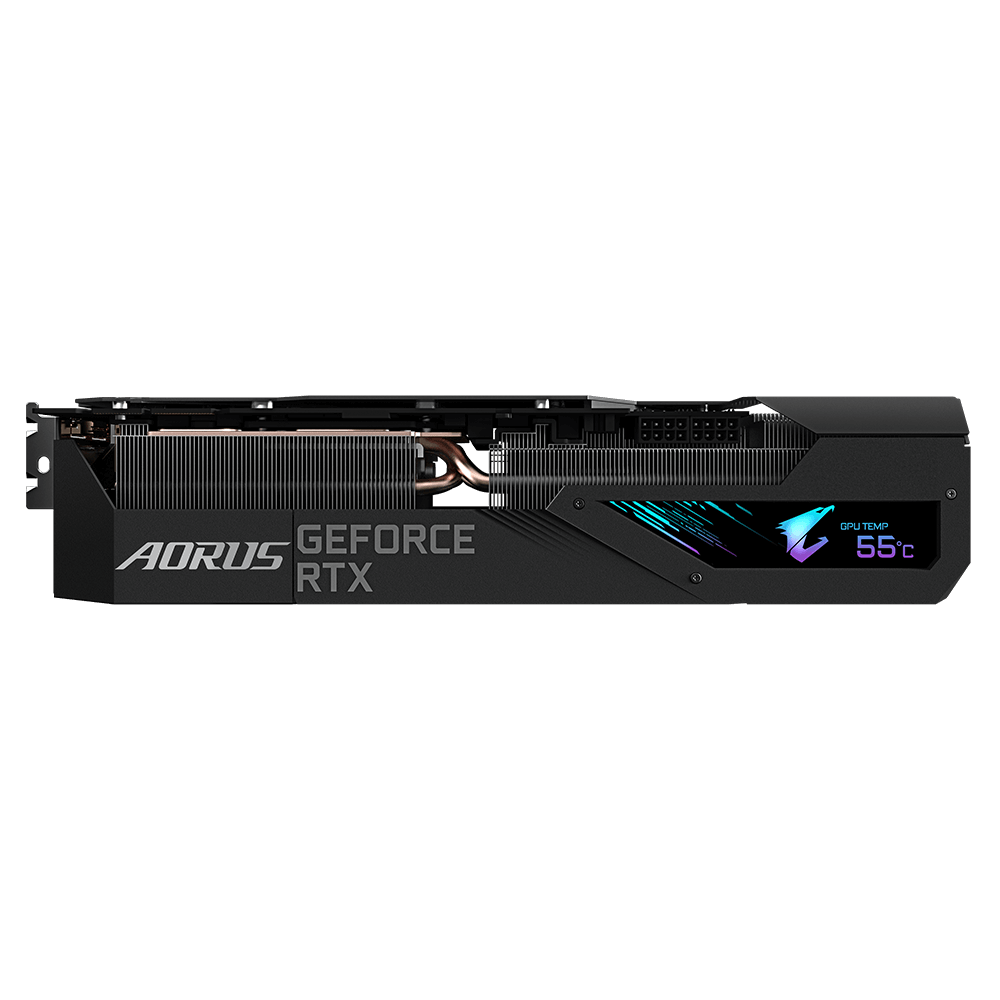

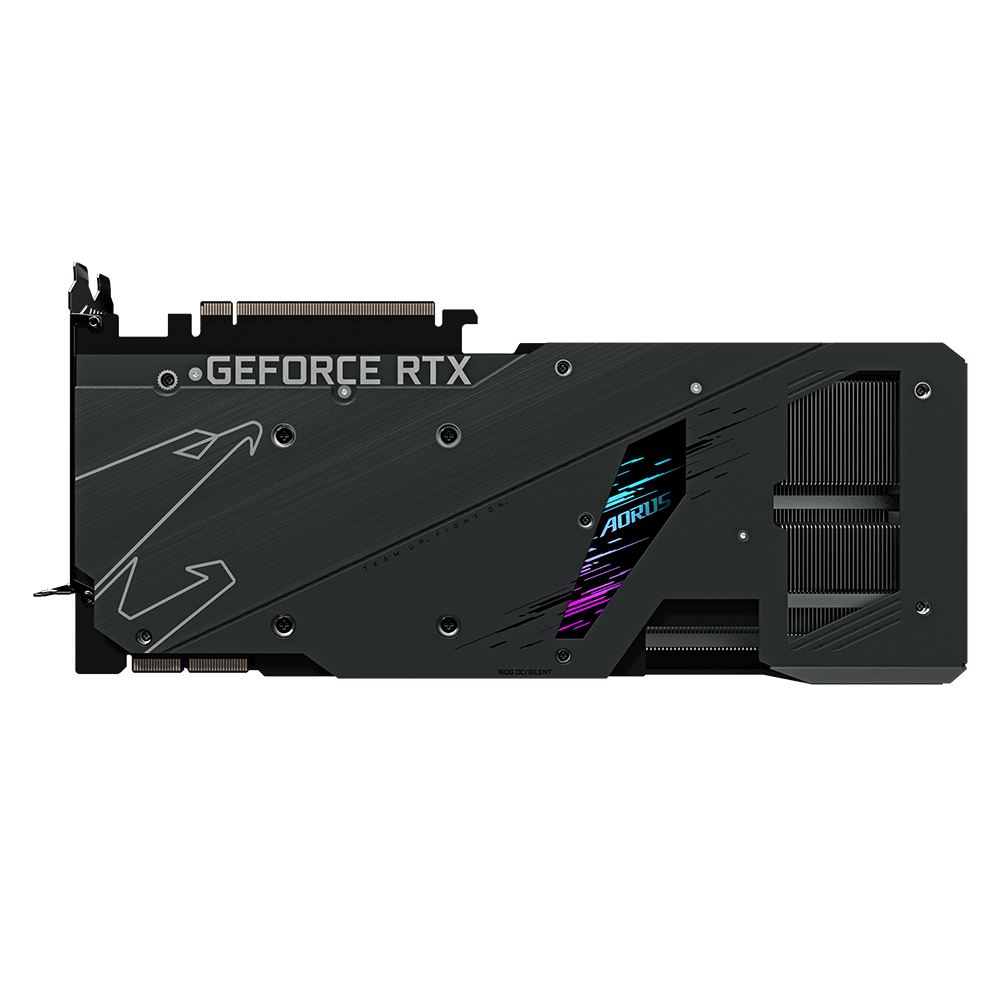

Special Features: LCD Edge View display, RGB Fusion 2.0 lighting, Dual BIOS (OC and Silent modes), metal backplate
🛠️ Specifications Summary
| Attribute | Detail |
|---|---|
| CUDA Cores | 10,496 |
| Memory | 24 GB GDDR6X, 384-bit @ 19.5 Gbps (~936 GB/s) |
| Boost Clock | 1,785 MHz (factory OC) |
| Outputs | 3× DisplayPort 1.4a, 2× HDMI 2.1, 1× HDMI 2.0 |
| Power Connectors | 2× 8-pin PCIe |
| Recommended PSU | 750 W or higher |
| Dimensions | 319 mm × 140 mm × 70 mm (3.5-slot) |
| Cooling | WINDFORCE STACK with triple 100 mm fans and vapor chamber |
| Special Features | LCD Edge View, RGB Fusion 2.0, Dual BIOS, metal backplate |
🗣️ Community Feedback
-
Cooling Performance: Users have reported that the card's cooling system can be loud under load, with fan speeds reaching up to 4,000 RPM. Some have experienced hotspot temperatures exceeding 100°C, especially during intensive tasks like 4K gaming.
-
Software Issues: There have been complaints about the reliability of the RGB Fusion 2.0 software and the LCD Edge View display, with some users experiencing backlight bleed and functionality issues.
-
Warranty and Reliability: Some users have faced hardware failures after several months of use, leading to RMA processes. It's noted that replacing thermal paste and pads can improve performance but may void the warranty.
